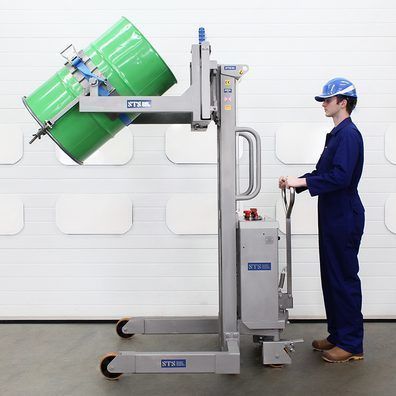

Pneumatic drum lifter STP01-DRU01-SS-Ex

compressed airrotatingstainless steel

Product overview ATEX and UKEX drum tipper manufactured in stainless steel for food and pharmaceutical factories and other clean areas. The model is pneumatic powered: an airline connection powers the lift function. Suitable for hazardous zoned environments including zones 1, 2, 21 and 22.

Key product features

• Air-powered functions: pneumatic-hydraulic pump driven by an airline connection supplies oil to the hydraulic lifting system; low-maintenance arrangement suitable for zoned ATEX/UKEX areas; optional air-hydraulic actuation available for powered clamp, rotation and drive to improve throughput.
• Universal drum band (DRU01): segmented modular band adapts to steel, plastic and fibre drums; adjustable diameter by removing two pins; standard range 50–220 litres. Fixed-diameter band (FB) option available for 200–220 litre drums.
• Stainless-steel construction: 304-grade stainless steel lifting chassis and housings; stainless-steel precision bearings and sealed components; lift ram and rotational gearbox located within stainless housings; mechanically polished or aqua-blasted finish suitable for GMP/clean manufacturing.
• Self-locking gearbox: manual rotation models use a worm-wheel self-locking gearbox (primary and secondary worm-wheel plus 90° bevel stage) with 120:1 ratio to prevent unintended rotation; folding handle for transport; hydraulic powered rotation option for high-volume pouring.
• Controllable rear-wheel steering: tiller-controlled rear castors move together for a tight turning radius and manoeuvrability in confined spaces; anti-static polyurethane tyres with precision bearings reduce rolling resistance.
• Drum suitability and securing: adjustable band handles drums 50–220 L (diameter 350–610 mm); drums under 350 mm diameter can be handled with a small-drum insert (INS01 option); MAUSER drum compatibility noted; rim clamp included to prevent slippage.

Optional features

• ATEX / UKEX certification for zones 1, 2, 21 and 22
• Powered drum clamp with flexible pads for 50–220 L drums
• Powered hydraulic rotation with controls at rear panel or front
• Air-powered drive system for moving drums over longer distances
• Telescopic or variable lift heights (single mast up to 1500 mm; telescopic up to 2700 mm)
• Custom leg dimensions to fit existing equipment
• Fixed-size over-centre band for 200–220 L steel and plastic drums
• Load-cell weighing system with digital read-out for in-process weighing
• Very small drum insert for containers down to 50 L (INS01)

Technical specifications

• Model designation: STP01-DRU01-SS-Ex
• Safe working load (SWL): 350 kg
• Functions: Powered lift/lower, manual rotation, manual push/pull
• Power: Air powered – minimum 400 L/min, optimum 760 L/min at 6 bar with 13 mm flexible air hose
• Controls: Silicone-booted push buttons and emergency stop
• Lift height: 1400 mm
• Tipping clearance: 1400 mm at 15° tip; 1325 mm at 30° tip (for 205 L drum)
• Drum compatibility: Steel and plastic drums, 50–220 L (including MAUSER drums)
• Band assembly: Segmented adjustable/universal band with 50 mm stainless-steel ratchet and polyester strap
• Additional drum securing: Rim clamp included to grip drum top edge
• Rotation gearbox: Worm-wheel, self-locking with 120:1 ratio and manual handle
• Construction: Stainless steel 304-grade
• Metal preparation: Aqua-blasted and vibro-polished stainless-steel parts, smooth clean finish
• Guarding: Anti-static polycarbonate shatterproof clear guarding
• Leg dimensions: Inside straddle width 850 mm, total outside width 1080 mm
• Front wheels: Two fixed 160 mm wheels, aluminium-centred with anti-static polyurethane tyres and precision bearings
• Rear wheels: Two tiller-steered 160 mm wheels, aluminium-centred with anti-static polyurethane tyres and precision bearings
• Noise: <76 dBA
• Compliance: CE / UKCA; ATEX / UKEX (zones 1, 2, 21, 22)
