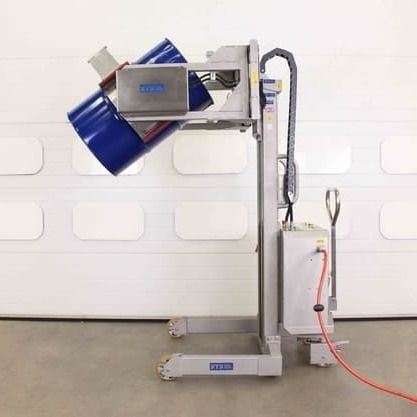

Motorized drum lifter STP01-RRH01-SS-Ex

pneumaticelectro-hydraulichand crank

Overview
Stainless-steel power drum tipper designed for hygienic industrial environments. Suitable for lifting, clamping and inverting steel, plastic and fibreboard drums from 50 to 220 L. Available as battery-driven electro-hydraulic (electric) or air-driven (pneumatic) units; pneumatic variants can be supplied with ATEX / UKEX certification for zones 1, 2, 21 and 22.

Key product features

• Powered clamp, lift and rotation for hands-off drum handling and fast cycle times.
• Hydraulic constant-tension clamping head with pressure gauge for operator monitoring.
• Fully compliant lift circuits with emergency stop, removable key switch and hydraulic burst-valve protection on rams.
• Powered gearbox enabling full 180° inversion to empty drums into process vessels or receivers.
• Flexible clamping pads to accommodate drum diameters 280–610 mm and heights up to 1000 mm; configurable pads for pallet-corner removal; INS02 attachment for L-ring plastic drums.
• 304-grade stainless steel construction with aqua-blasted and vibro-polished finish for easy cleaning and hygiene compliance.
• Ackermann-style rear-wheel steering, operator-controlled park brakes and polycarbonate shatterproof guarding (anti-static on Ex variant).
• Electric model: two onboard 80 Ah batteries and integrated 230 V smart charger; Pneumatic model: requires compressed air supply (ATEX variants available).

Optional features

• ATEX / UKEX certification for pneumatic-hydraulic variants (zones 1, 2, 21, 22).
• Power-drive tiller steering for longer transfers.
• Telescopic / variable lift (single mast ~1500 mm; telescopic up to ~2700 mm).
• Variable leg dimensions for machine integration and narrow-aisle use.
• Load-cell weighing system with fixed display for in-process drum weighing.

Technical data / specifications

• Example models: STE01-RRH01-SS (Electric) and STP01-RRH01-SS-Ex (Pneumatic ATEX/UKEX).
• Safe working load (SWL): 300 kg.
• Functions: Powered lift/lower, powered clamp, powered rotation, manual push/pull.
• Electric power: Two onboard 80 Ah batteries drive an electro-hydraulic pump; integrated 230 V smart charger in control box.
• Pneumatic power (ATEX model): Air powered — min. 400 L/min, optimum 760 L/min at 6 bar with 13 mm flexible hose.
• Controls: Silicone-booted buttons, emergency stop, removable key switch, digital battery condition meter, clamp pressure gauge.
• Lift stroke: 1515 mm.
• Tipping clearance: 1415 mm at 15° / 1338 mm at 30° (measured with 205 L drum).
• Drum compatibility: Steel, plastic and fibreboard drums 50–220 L (includes MAUSER); L-ring plastic drums require INS02 attachment.
• Clamping head: Hydraulic constant-tension clamping head with pressure gauge for hands-off operation.
• Powered rotation: Gearbox-driven rotation to fully invert drums 180°.
• Construction: Stainless steel 304; aqua-blasted and vibro-polished finish.
• Leg dimensions: Inside straddle width 850 mm; total outside width 1080 mm.
• Wheels: Front — two fixed 160 mm; Rear — two tiller-steered 160 mm (materials vary by model; conductive tyres on ATEX variant).
• Noise level: <76 dBA.
• Compliance: CE / UKCA. ATEX / UKEX available for Ex-rated pneumatic models. Declaration of conformity supplied for Ex units.
