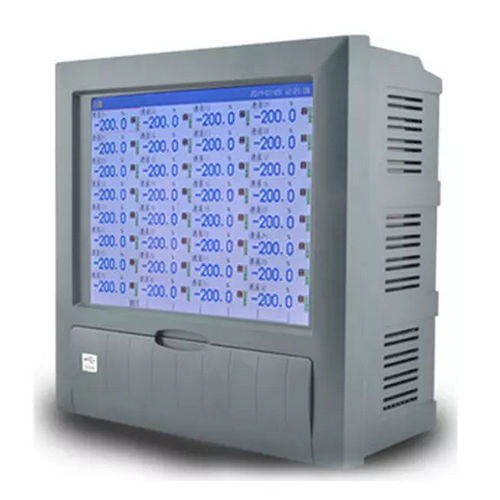

Paperless recorder SUP-R8000D

universaldisplayalarm

Inputs channel: Up to 40 channels of universal input Power supply: 220VAC，50Hz Display: 10.41 inches TFT display Output: alarm output, RS485 output Dimensions: 288 * 288 * 168mm Input signal type - Ⅱ standard signal: (0 ~ 10) mA, (0 ~ 5) V - Ⅲ standard signal: (4 ~ 20) mA, (1 ~ 5) V - 14 thermocouples: B, E, J, K, S, T, R, N, WRe5-26, WRe3-25, BA1, BA2, F1, F2 - 3 kinds of thermal resistance: Pt100, Cu50, JPt100 - Other signals (0-20) mv, (0-100) mv, (-10-10) v, (0-10) v, (-5-5) v, (0-1) v, ) V, resistance 0-350Ω, frequency 0-10KHZ Isolation - Isolation between channels and ground Resistant to heat greater than 500VAC, isolation between channels and channels Withstanding voltage> 250VAC Powered by - Voltage (100 ~ 240) VAC - Frequency (47 ~ 63) Hz - The maximum power consumption 30VA Fuse specifications - 3A / 250VAC, slow blow type Distribution output - Each loop 65ma, 24VAC, up to 8 loops Simulated transmission output - Up to 8 Road 4-20ma transmission output Hardware watchdog - Integrated WATCHDOG chip, to ensure long-term safe and reliable host operation Real time clock - Using hardware real-time clock, power-down by the lithium battery, the maximum clock error ± 1 minute / month Power-down protection - All data is saved in NAND FLASH memory, ensuring that all historical data and configuration are lost due to power loss Communication Interface - Provide RS-485 and RS232 two kinds of communication interface for users to choose, can be Ethernet connection, but also with the panel printer connection. Protocol - Using R-Bus or ModBus protocol, the communication baud rate has 5 options, 1200 bps, 9600 bps, 19200 bps, 57600 bps
