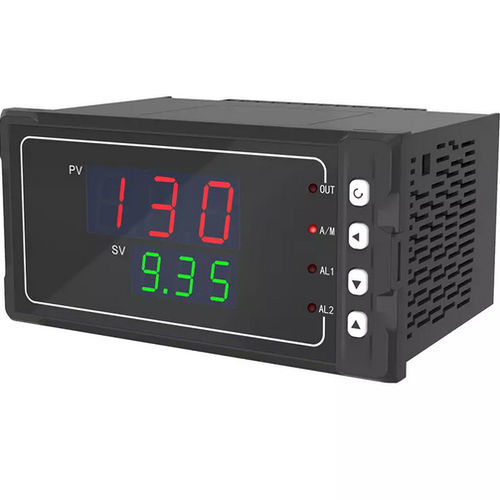

Analog temperature controller SUP-130T
LEDPIDstandard

analog temperature controller
analog temperature controller
analog temperature controller
analog temperature controller
analog temperature controller
analog temperature controller
Add to favorites
Compare this product


Characteristics

Display
LED, analog
Type
PID
Protection level
standard
Use
heating, cooling, laboratory
Other characteristics
modular, 4-20 mA, 2-way
Maximum temperature

Max.: 50 °C (122 °F)

Min.: -10 °C (14 °F)

Description

SUP-130T Economic 3-digit Display Fuzzy PID Temperature Controller The instrument displays with dual row 3-digit numeric tube, with a variety of RTD/TC input signal types optional with an accuracy of 0.3%; 5 sizes optional, supporting 2-way alarm functions, with analogue control output or switch control output function, under accurate control without overshoot. Features Double four-digit LED display; 5 types of dimensions available; Standard snap-in installation; Power supply: AC/DC100~240V (AC/50-60Hz) Power consumption≤5W; DC 12~36V Power consumption≤3W Product - Economic 3-digit Display Fuzzy PID Temperature Controller Model - SUP-130T Dimension - C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm Measurement accuracy - ±0.3%FS Transmission output - Analog output----4-20mA(RL≤500Ω)、1-5v(RL≥250kΩ) Alarm Output - With upper and lower limit alarm function, with alarm return difference setting;Relay contact capacity: AC125V/0.5A(small)DC24V/0.5A(small)(Resistive load) AC220V/2A(big)DC24V/2A(big)(Resistive load) Note: When the load exceeds the relay contact capacity, please do not directly carry the load Power supply - AC/DC100~240V (AC/50-60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W Use environment - Operating temperature(-10~50℃)No condensation, no icing Economic 3-digit Display Fuzzy PID Temperature Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C.
