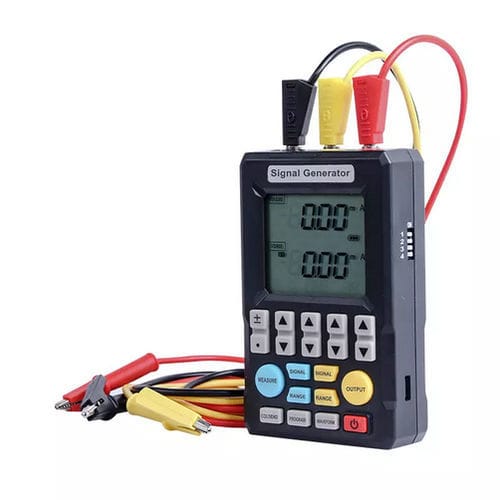

Signal generator SUP-C703S
voltagepatterncurrent

signal generator
signal generator
signal generator
signal generator
Add to favorites
Compare this product


Characteristics

Type
signal, voltage, pattern, current, thermoelectric
Other characteristics
digital, programmable, sweep

Description

SUP-C703S Signal generator has a multiple signal Output and measurement including voltage, current and thermoelectric couple with LCD screen and silicone keypad, simple operation, longer standby time, higher accuracy and programmable output. It's widely used in LAB Industrial field, PLC Process Instrument, Electric value and other area's debugging. Features · Sources and reads mA, mV, V, Ω, RTD and TC · 4*AAA batteries power supply · Thermocouple measurement / output with automatic or manual cold junction compensation · Corresponds to various types of source pattern (Step sweep / Linear sweep / Manual step) Product - Signal generator Model - SUP-C703S Operating temperature and humidity - -10~55℃, 20~80% RH Storage temperature - -20-70℃ Size - 115x71x30(mm) Weight - 143g Power - 4*AAA batteries or external 5 V/1A adapter Power dissipation - About 200 mA; with power supplied by 4*AAA batte ries ( each nominal capacity of 1100 mAh ), can be used for 4 hours with a full load and 17 hours standing by. OCP - 30V Specification · Sources and reads mA, mV, V, Ω, RTD and TC · Keypad to enter output parameters directly · Concurrent input / output, convenient to operate · Sub display of sources and reads (mA, mV, V) · Large 2-line LCD with backlight display · 24 VDC loop power supply · Thermocouple measurement / output with automatic or manual cold junction compensation · Corresponds to various types of source pattern (Step sweep / Linear sweep / Manual step)

Catalogs

No catalogs are available for this product.

See all of Supmea Automation‘s catalogs
