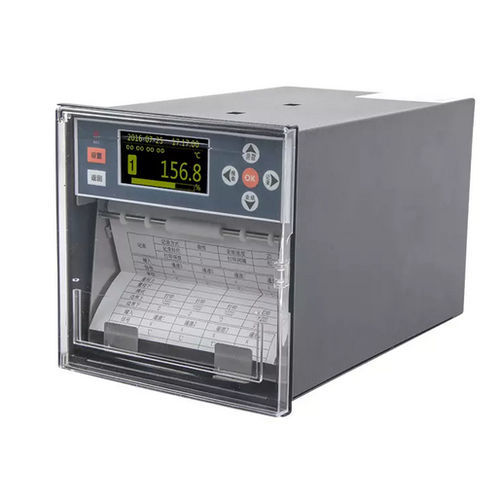

Chart recorder SUP-R1200

universalcurrentalarm

SUP-R1200 chart recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted. Features Power supply: 100-240VAC，47-63Hz,maximum power＜40W Output: alarm output, RS485 output Chart speed: Free setting range of 10-2000mm/h Dimensions: 144*144*233mm Size: 138mm*138mm Display - LCD display screen Input - Voltage: (0-5)V/(1-5)V/(0-20)mV/(0-100)mV Electric current : (0-10)mA/(4-20)mA Thermocouple: B,E,K,S,T Thermal resistance: Pt100, Cu50, Cu100 Output - Up to 2 current output channels( 4 to 20mA) Sampling period - 600ms Chart speed - 10mm/h -- 1990mm/h Communication - RS 232/RS485 (need Customization) Power supply - 220VAC; 24VDC Precision - 0.2%FS Shorter mounting depth - 144mm Introduction SUP-R1200 chart recorder embodies many functions, such as signal processing, display, printing, alarming and so on, and it is an ideal device to collect, analyze and store data and information in industrial processes. This device is mainly applied on the industrial spots like metallurgy, petrol, chemicals, building material, paper-making, food, medicine, heat or water treatment industry. -Display: Rich information is presented simultaneously, such as timing, data, chart, and alarming and so on; two types of display: set-channel and circular -Input function:　 A maximum of 8 universal channels, receiving many types of signals like current voltage, thermocouple and thermal resistance and so on.
