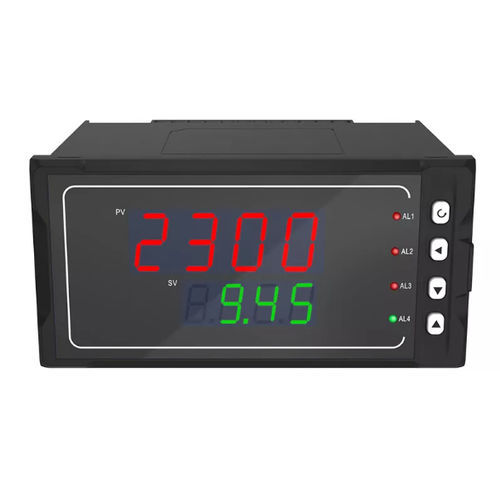

DC regulator SUP-2300

modularPID

Artificial intelligence PID regulator adopts advanced experts PID intelligence algorithm, with high control precision, no overshoot, and fuzzy self-tuning function. The output is designed as modular architecture; you can acquire various control types by replacing different function modules. You can choose PID control output type as any of current, voltage, SSR solid state relay, single / three-phase SCR zero-over triggering and so on. Features 8 types of dimensions available; Standard snap-in installation; Power supply: AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5WDC 12~36V Power consumption≤3W Specification Dimension - A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm K. 160*80*110mm L. 80*160*110mm M. 96*96*110mm Measurement accuracy - ±0.2%FS Transmission output - Analog output----4-20mA、1-5v、 0-10mA、0-5V、0-20mA、0-10V Alarm Output - ALM----With upper and lower limit alarm function, with alarm return difference setting；Relay capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load Power supply - AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W Use environment - Operating temperature（-10~50℃）No condensation, no icing Printout - RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions Artificial intelligence PID regulator adopts advanced experts PID intelligence algorithm, with high control precision, no overshoot, and fuzzy self-tuning
