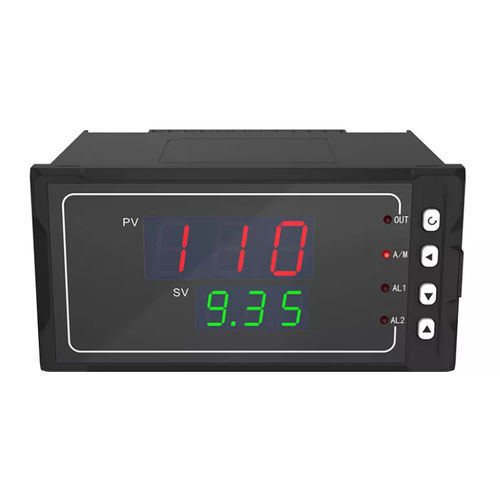

Economic 3-digit Single-loop Digital Display Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C.
Features
Double four-digit LED display;
5 types of dimensions available;
Standard snap-in installation;
Power supply: AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W; DC 12~36V Power consumption≤3W
Product - Digital Single-loop digital display controller
Model - SUP-110T
Display - Dual-screen LED display
Dimension - C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
H. 48*48*110mm
Measurement accuracy - ±0.3%FS
Analog output - Analog output----4-20mA、1-5V(RL≤500Ω)、1-5V(RL≥250kΩ)
Alarm Output - With upper and lower limit alarm function, with alarm return difference setting;Relay contact capacity:
AC125V/0.5A(small)DC24V/0.5A(small)(Resistance C load)
AC220V/2A(big)DC24V/2A(big)(Resistive load)
Note: When the load exceeds the relay contact capacity, please do not directly carry the load
Power supply - AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W
DC 12~36V Power consumption≤3W
Use environment - Operating temperature(-10~50℃)No condensation, no icing
Control precision - ±0.5℃
Economic 3-digit Single-loop Digital Display Controller is in a modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C.
