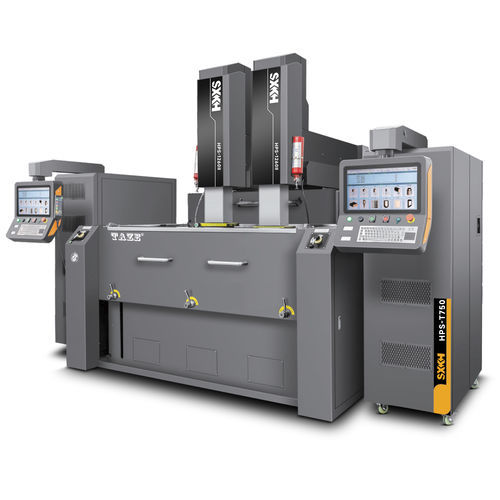

Double-head EDM HPS-1260IIdie sinkinghigh-accuracyhigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, high-accuracy, for mold manufacturing, high-speed, flexible, double-head, for metalworking tools, for small workpieces, for micro-machining
- X travel
600 mm
(23.62 in)- Y travel
500 mm
(19.69 in)- Z travel
400 mm
(15.75 in)
Description
MODEL: HPS-1260II
X/Y/Z working stroke 600 / 500 / 400mm
Working oil tank volume 2000×1200×600mm(L×W×H)
Workbench specifications 1200×600mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 330-730mm
Max. electrode load 150KG
Max. worktable load capacity 3000KG
Total Net weight (including oil tank) 8800KG
Overall Size (L×W×H) 2460×2320 ×2610mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
X/Y/Z working stroke 600 / 500 / 400mm
Working oil tank volume 2000×1200×600mm(L×W×H)
Workbench specifications 1200×600mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 330-730mm
Max. electrode load 150KG
Max. worktable load capacity 3000KG
Total Net weight (including oil tank) 8800KG
Overall Size (L×W×H) 2460×2320 ×2610mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
