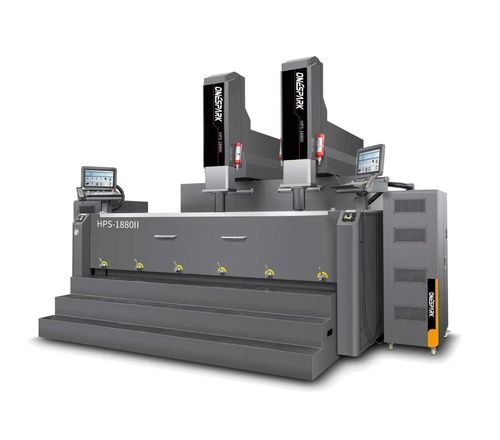

Die sinking EDM HPS-1680IIhigh-speedfor micro-machiningfor mold manufacturing
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, for mold manufacturing, high-speed, double-head, for large parts, for metalworking tools, for micro-machining
- X travel
1,100 mm
(43.31 in)- Y travel
800 mm
(31.5 in)- Z travel
500 mm
(19.69 in)
Description
MODEL: HPS-1680II
X/Y/Z working stroke 1100 / 800 / 500mm
Working oil tank volume 2628×1521×700mm(L×W×H)
Workbench specifications 1700×1000mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 600-1100mm
Max. electrode load 220KG
Max. worktable load capacity 6000KG
Total Net weight (including oil tank) 12500KG
Overall Size (L×W×H) 3600×3800 ×3850mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
X/Y/Z working stroke 1100 / 800 / 500mm
Working oil tank volume 2628×1521×700mm(L×W×H)
Workbench specifications 1700×1000mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 600-1100mm
Max. electrode load 220KG
Max. worktable load capacity 6000KG
Total Net weight (including oil tank) 12500KG
Overall Size (L×W×H) 3600×3800 ×3850mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
Catalogs
No catalogs are available for this product.
See all of SXKH GLOBAL‘s catalogsOther SXKH GLOBAL products

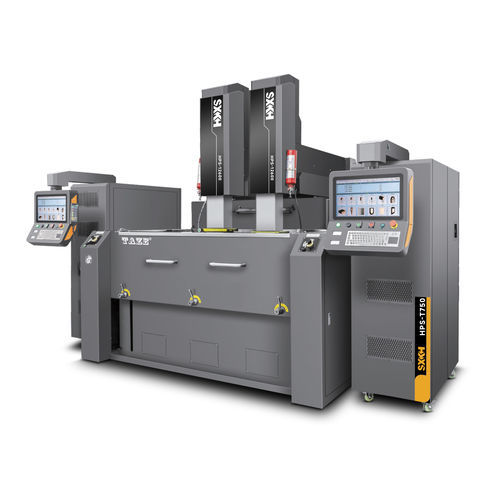

DOUBLE HEAD EDM MACHINE
