Die sinking electrical discharge machine HPX-1400IIhigh-speedprecisionhigh-productivity
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, precision, high-speed, high-productivity, for mold manufacturing, for large parts, for micro-drilling
- X travel
850 mm
(33.46 in)- Y travel
700 mm
(27.56 in)- Z travel
450 mm
(17.72 in)
Description
Model: HPX-1400II
X/Y/Z working stroke 850 / 700 / 450mm
Working oil tank volume 2250×1300×700mm(L×W×H)
Table size 1500×900mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.13Ra
Max. Machining Speed 500mm3/min
Max. Machining Current 50A
Min. Electrode loss 0.1%
Distance from electrode tip to table 600-1150mm
Max. electrode load 400KG
Max. worktable load capacity 4000KG
Total Net weight (including oil tank) 8700KG
Machine dimension (L×W×H) 3800×3650 ×3430mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
X/Y/Z working stroke 850 / 700 / 450mm
Working oil tank volume 2250×1300×700mm(L×W×H)
Table size 1500×900mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.13Ra
Max. Machining Speed 500mm3/min
Max. Machining Current 50A
Min. Electrode loss 0.1%
Distance from electrode tip to table 600-1150mm
Max. electrode load 400KG
Max. worktable load capacity 4000KG
Total Net weight (including oil tank) 8700KG
Machine dimension (L×W×H) 3800×3650 ×3430mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
Catalogs
No catalogs are available for this product.
See all of SXKH GLOBAL‘s catalogsOther SXKH GLOBAL products

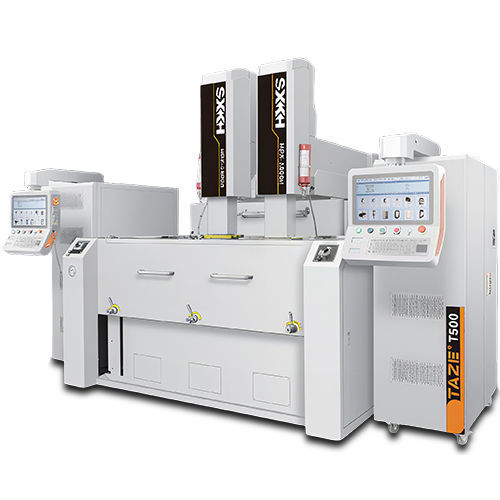

DOUBLE HEAD EDM MACHINE
