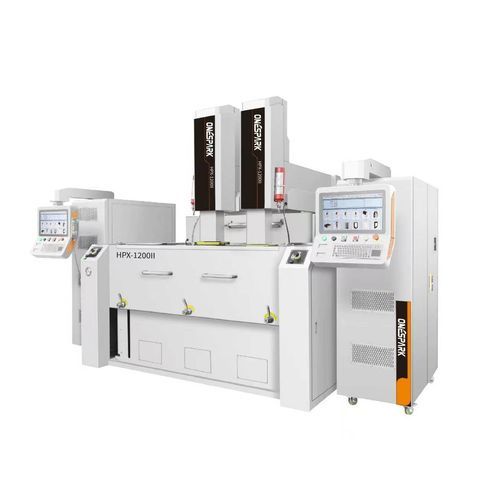

Wire EDM electrical discharge machine HPX-12001

Model: HPX-1200II
X/Y/Z working stroke 600 / 500 / 400mm
Working oil tank volume 2000×1250×600mm(L×W×H)
Table size 1300×600mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.13Ra
Max. Machining Speed 500mm3/min
Max. Machining Current 50A
Min. Electrode loss 0.1%
Distance from electrode tip to table 550-1000mm
Max. electrode load 180KG
Max. worktable load capacity 3500KG

Total Net weight (including oil tank) 7000KG
Machine dimension (L×W×H) 3530×3400 ×3370mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
