Double-head EDM HPS-1880II
die sinkinghigh-accuracyhigh-speed

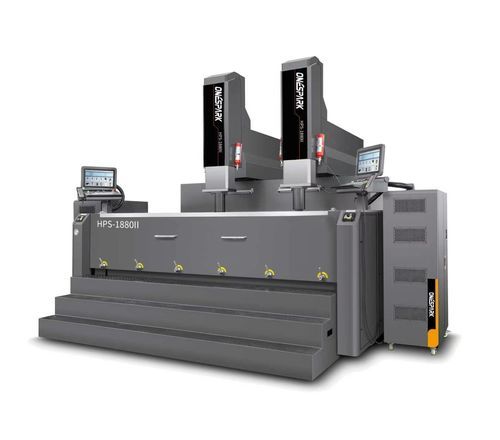

Double-head EDM - HPS-1880II - SXKH GLOBAL - die sinking / high-accuracy / high-speed
Double-head EDM - HPS-1880II - SXKH GLOBAL - die sinking / high-accuracy / high-speed
Double-head EDM - HPS-1880II - SXKH GLOBAL - die sinking / high-accuracy / high-speed - image - 2
Double-head EDM - HPS-1880II - SXKH GLOBAL - die sinking / high-accuracy / high-speed - image - 3
Add to favorites
Compare this product
Go to the SXKH GLOBAL website for more information

Characteristics

Type
die sinking
Other characteristics
high-accuracy, for mold manufacturing, high-speed, flexible, double-head, for metalworking tools, high-productivity
X travel

1,200 mm
(47.24 in)

Y travel

800 mm
(31.5 in)

Z travel

600 mm
(23.62 in)

Description

MODEL: HPS-1880II
X/Y/Z working stroke 1200 / 800 / 600mm
Working oil tank volume 3000×1540×700mm(L×W×H)
Workbench specifications 2000×1000mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 660-1150mm
Max. electrode load 250KG
Max. worktable load capacity 7000KG

Total Net weight (including oil tank) 15000KG
Overall Size (L×W×H) 3700×3800 ×3850mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
