Die sinking electrical discharge machine HPX-1800IIprecisionhigh-productivityfor mold manufacturing
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, precision, high-productivity, for mold manufacturing, for large parts, for metalworking tools
- X travel
1,200 mm
(47.24 in)- Y travel
800 mm
(31.5 in)- Z travel
600 mm
(23.62 in)
Description
Model: HPX-1800II
X/Y/Z working stroke 1200 / 800 / 600mm
Working oil tank volume 3500×1800×650mm(L×W×H)
Table size 2000×1000mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.13Ra
Max. Machining Speed 500mm3/min
Max. Machining Current 50A
Min. Electrode loss 0.1%
Distance from electrode tip to table 600-1200mm
Max. electrode load 450KG
Max. worktable load capacity 6500KG
Total Net weight (including oil tank) 14000KG
Machine dimension (L×W×H) 3890×4400 ×3590mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
X/Y/Z working stroke 1200 / 800 / 600mm
Working oil tank volume 3500×1800×650mm(L×W×H)
Table size 2000×1000mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.13Ra
Max. Machining Speed 500mm3/min
Max. Machining Current 50A
Min. Electrode loss 0.1%
Distance from electrode tip to table 600-1200mm
Max. electrode load 450KG
Max. worktable load capacity 6500KG
Total Net weight (including oil tank) 14000KG
Machine dimension (L×W×H) 3890×4400 ×3590mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
Catalogs
No catalogs are available for this product.
See all of SXKH GLOBAL‘s catalogsOther SXKH GLOBAL products

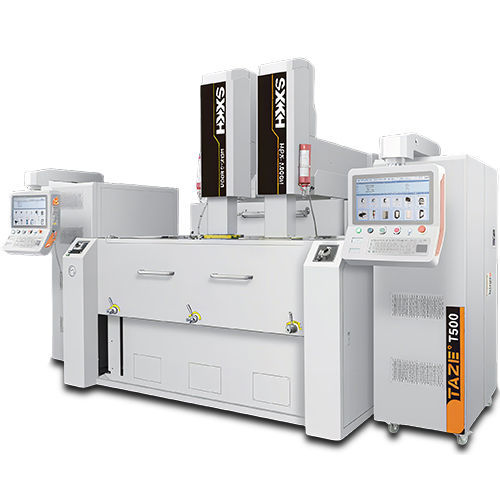

DOUBLE HEAD EDM MACHINE
