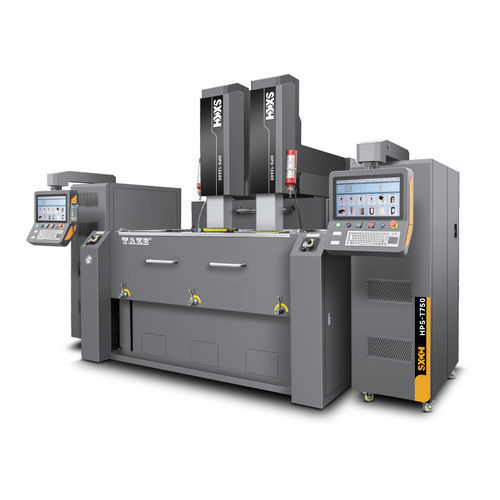

Double-head EDM HPS-3510IIdie sinkinghigh-accuracyhigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- high-accuracy, for mold manufacturing, high-speed, flexible, double-head, for large parts, for metalworking tools
- X travel
2,600 mm
(102.36 in)- Y travel
900 mm
(35.43 in)- Z travel
650 mm
(25.59 in)
Description
MODEL: HPS-3510II
X/Y/Z working stroke 2600 / 900 / 650mm
Working oil tank volume 4500×1800×700mm(L×W×H)
Workbench specifications 3500×1200mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 650-1300mm
Max. electrode load 300KG
Max. worktable load capacity 15000KG
Total Net weight (including oil tank) 26000KG
Overall Size (L×W×H) 5200×4500 ×4400mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
X/Y/Z working stroke 2600 / 900 / 650mm
Working oil tank volume 4500×1800×700mm(L×W×H)
Workbench specifications 3500×1200mm(L×W)
High-Gloss Mirror Circuit (Best Surface Finish) 0.1Ra
Max. Machining Speed 750mm3/min
Max. Machining Current 75A(Optional 100A)
Min. Electrode loss 0.1%
Distance from electrode head to table 650-1300mm
Max. electrode load 300KG
Max. worktable load capacity 15000KG
Total Net weight (including oil tank) 26000KG
Overall Size (L×W×H) 5200×4500 ×4400mm
Positioning accuracy 5um
Repeat positioning accuracy 2um
