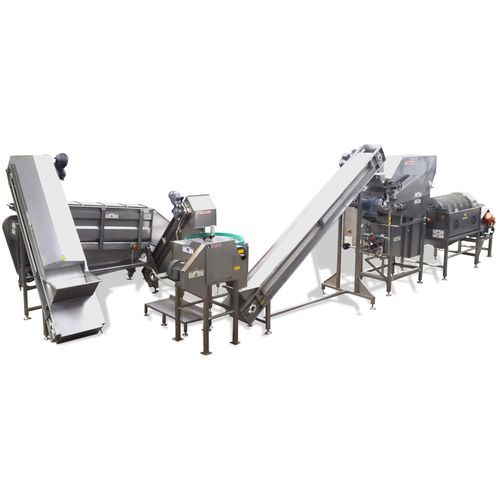

This processing line is used for husking (peeling), kernel cutting, blanching, hydro cooling-washing and broken-water removing of the sweet corn. It`s capacity is up to 1500 kgs/hr of green corn cob input and 500 kgs/hr of sweet corn kernel output.
This small scale sweet corn processing line is crated from below units and necessaries below connections:
Corn Husking & Corn Cutting Feeding Acummulation Unit:
- ELECTRICITY : 380-400VAC, 50Hz / 440-460VAC, 60Hz; 3ph + N + PE (4,2 kw)
- PNEUMATIC : NO
- WATER : 3/4" female (Pmax= 2,5 bar)
- STEAM : 1/2" female (Pmax= 3 bar)
Corn Kernel Cutting Unit:
- ELECTRICITY : 380-400VAC, 50Hz / 440-460VAC, 60Hz; 3ph + N + PE (4 kw)
- WATER : Ø6mm x1mm hose (Pmax= 2,5 bar)
Blanching, Hydro Cooling-Washing & Broken-Water Removing Unit:
- ELECTRICITY : 380-400VAC, 50Hz / 440-460VAC, 60Hz; 3ph + N + PE (3 kw)
- PNEUMATIC : Ø8mm x1mm hose (Pmax= 5,5 bar)
- WATER : 1" female (Pmax= 2,5 bar)
- STEAM : DN25-PN16 flanged (Pmax= 4,5 bar)
- CONDENSATE : 3/4" female
- DRAIN : Ø76mm pipe
