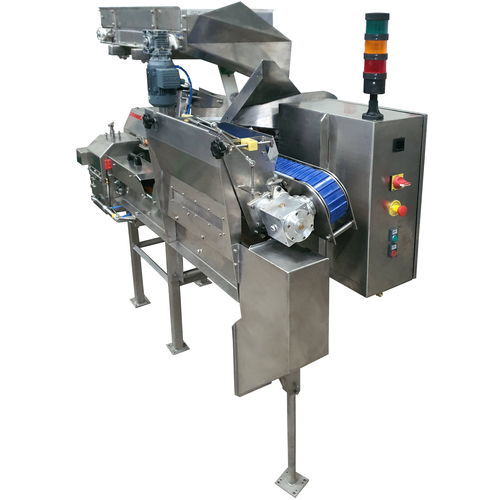

Corn vegetable cutting machine TACC02

Automatic feeding and orienting model for cutting sweet corn kernels with electric motor drive system. Capacity: Depends on dimension & shape of corn cobs, but up to 100-130 cobs/min by approx. 90% orientation accuracy at each cutter for average dimension and shape of corn cobs. • It includes one cutter head with one set of cutting knives. • Corn cob feed conveyor made of polyurethane. • Sensors and relays intervene jam clear system by reversing of belt and the rolls and pneumatic actuating nubbin knocking. • Construction and product contact points are AISI 304 stainless steel and non-corrosive food grade materials. • Water spray for cutter head. • Centralized lubrication port. • Electrical switch safety system. • Cutter drive motor with inverter, 4kw. • Metering Conveyor drive motor, 0,12kw. • Infeed wheel drive motor with inverter, 0,25kw. • Orienter drive motor with inverter, 0,25kw. • Digital displayed ear counting system can give you datas about total ears and flow as ear per minute. • Electrical and pneumatic control panel assembled. • Overall Dimensions (L*W*H) : approx. 188cm*112cm*192cm
