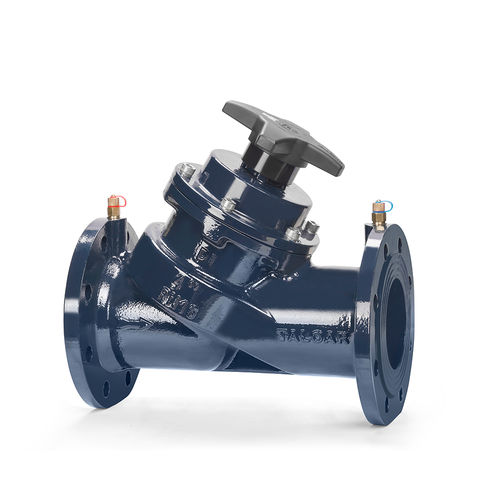

Balancing valve F500-D
handregulatingfor water

Balancing valve - F500-D - Taloar - hand / regulating / for water
Balancing valve - F500-D - Taloar - hand / regulating / for water
Balancing valve - F500-D - Taloar - hand / regulating / for water - image - 2
Balancing valve - F500-D - Taloar - hand / regulating / for water - image - 3
Add to favorites
Compare this product

Characteristics

Operation
hand
Function
regulating
Media
for water
Body
flange, angle seat, compact, Y
Applications
HVAC
Material
ductile iron, EPDM
Associated function
balancing
Other characteristics
full-flow, with seal, self-sealing
DN

Max.: 20 in

Min.: 2.5 in

Pressure

Max.: 350 psi

Min.: 235 psi

Temperature

Max.: 130 °C
(266 °F)

Min.: -10 °C
(14 °F)

Description

TALOAR ductile iron flow balance valve adopts low-resistance Y-shaped structure, the shell is coated with epoxy resin. Flow measuring fittings on both ends feature good self-sealing performance and easy adjustment. The highly precise valve core and favorable sealing performance ensure measurement precision and persistence. Product Features High measurement precision. Linear ball valve installed in the front of the measuring point for maintenance. Plug-in measuring point, allowing quick connection Regulating memory function. Precise digital setting and display. Material Specifications The linear brass ball valve with outside screw × inside screw is mounted in the front of the measuring point for ON/OFF or maintenance purpose.
