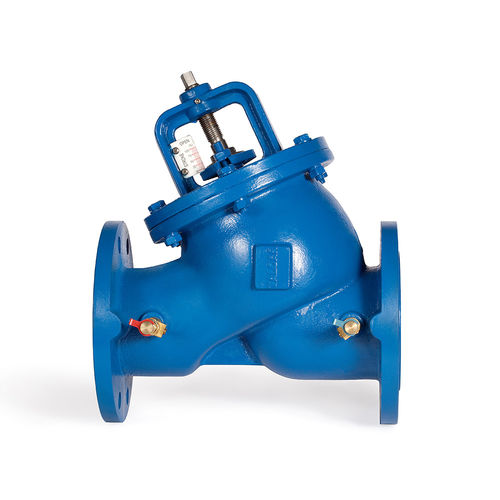

Multi-function valve MF500

manualfor controlon/off

Position indicator No lubrication required Reserved connections for testing Removable top cap design, making the pipeline repair easy Horizontal or vertical installation O-ring seal, zero leakage Multiple functions, saving purchasing cost The multi-functional valve can perform more functions on the same valve body. First, it can be used as silencing check valve or on-off valve. Apart from that, it can also be a balance valve. Besides, it has two connections points reserved for testing. A unique V-shaped seat is used in the valve therefore the valve has good regulating performance. Due to the design features, the valve can be maintained in the pipelines without special tools, without the need for removing the valve from the pipeline. The multi-function valve integrates the functions of butterfly valve, balance valve, silencing check valve and measuring valve. The use of the multi-functional valve can shorten installation time, reduce installation space, and save installation cost (including hardware cost, labor cost, etc.). Please Provide the Following Data When Ordering Valve figure number/size/pressure grade/connecting end type/other optional accessories
