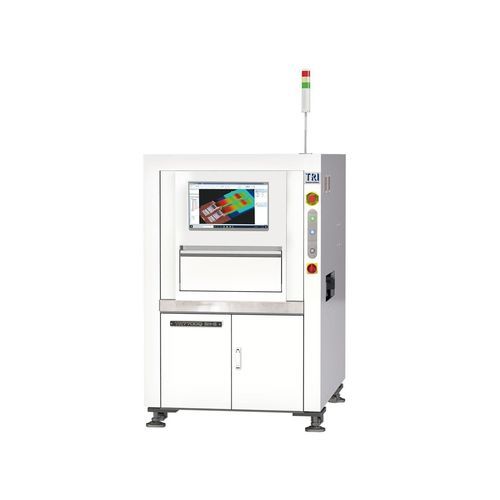

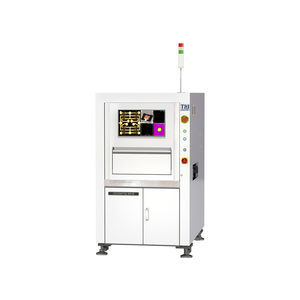

INTRODUCTIONThe TR7700Q SII-S is an AI-powered next-generation inspection platform for the Semiconductor & Advanced Packaging industry. It combines 3D SEMI AOI with metrology capabilities and multiple imaging technologies to deliver full-coverage inspection. The platform provides 2.5 µm resolution and can inspect wire diameters down to 15 µm. It supports Smart Factory standards including IPC-CFX and IPC-HERMES-9852.
KEY CAPABILITIES / FEATURES- 2.5 µm high-resolution 3D SEMI back-end AOI
- Precise metrology-grade measurements (optional)
- AI-powered inspection with AI Smart Programming (optional)
- Inspection of Au, Al, Ag and Cu wires down to 15 µm
- Bond inspection: ball bond, wedge bond, ribbon bond
- Shortwave Infrared (SWIR) lighting for inner-crack and chipping detection (optional)
- Industry 4.0 / Smart Factory ready
IMAGING / OPTICAL SYSTEMImaging Method: Stop-and-Go Imaging
Top Camera options: 12 Mpix | 21 Mpix | 25 Mpix
Imaging resolution options: 2.5 µm / 5 µm / 5.5 µm / 7 µm / 8 µm
Lighting: Multi-phase True Color LED (SWIR optional)
IMAGING PERFORMANCEMax. Imaging Speed:
@2.5 µm: 3.5 cm²/sec (available for TR7700Q SII-S)
@5 µm: 13 cm²/sec
@5.5 µm: 7.8 cm²/sec
@7 µm: 24 cm²/sec
@8 µm: 29 cm²/sec
MOTION TABLE & CONTROLX Axis Control: Ballscrew + AC servo with motion controller
Y Axis Control: Dual-driven ball screw + AC servo motor
Z Axis Control: Ballscrew + AC servo with motion controller
X-Y-Z Axis Resolution: 1 µm
BOARD HANDLINGMax. PCB Size:
TR7700Q SII-S: 510 x 460 mm (at 2.5 µm: 285 x 150 mm)
TR7700Q SII-S DL: 510 x 310 mm x 2 lanes, or 510 x 590 mm x 1 lane
PCB Thickness: 0.6–5 mm
Max. PCB Weight: 3 kg (optional 5 kg)
Top Clearance: TR7700Q SII-S: 20 mm (21MP 8 µm: Top Clearance 50 mm)
Bottom Clearance: 40 mm
Edge Clearance: 3 mm (optional 4 / 5 mm)
Conveyor / Inline Height: 880–920 mm (SMEMA compatible)
INSPECTION FUNCTIONSComponent Defects- Missing
- Tombstoning
- Billboarding
- Polarity
- Rotation
- Shift
- Wrong Marking (OCV)
- Defective / Upside Down
- Extra Component
- Foreign Material
- Lifted Component
Solder Joint Defects- Solder Fillet Height
- Solder Volume %
- Excess Solder
- Insufficient Solder
- Bridging
- Through-hole Pins
- Lifted Lead
- Golden Finger Scratch / Contamination
Die Bonding- Missing
- Orientation
- Shift
- Rotation
- Chipping
- Crack
- Scratch
- Foreign Material
- Epoxy on Die
- Epoxy Coverage
Wire Bonding- Broken
- Short
- Sweep / Sink
- Missing
- Sway
- Collapse
- Loop Height
- Sagged Wire
- Cross Wire Gap
- Wire Tracing
- Ball Bond Diameter
- Ball Placement
- Stitch Width
- Stitch Coverage over Ball
- Ball-off Pad
- Ball touch Pad Distance
- Clubbed Ball
- Ball Thickness
- Lifted Ball
- Low Landing
- Bond on Contamination
- Foreign Material
BONDING AREA / PAD INSPECTION- Copper Protrusion
- Crack
- Chipping
- Exposed Copper / Exposed Nickel
- Target Material
- Scratches or Brush Marks
- Oxidation
- Foreign Material
DIMENSIONS & WEIGHTWxDxH:
TR7700Q SII-S: 1100 x 1720 x 1710 mm
TR7700Q SII-S DL: 1100 x 1820 x 1710 mm
Note: signal tower not included (signal tower height 515 mm)
Weight:
TR7700Q SII-S: 910 kg
TR7700Q SII-S DL: 960 kg
ADDITIONAL NOTESSupports Smart Factory standards (IPC-CFX, IPC-HERMES-9852). Selected features are optional and noted where applicable.
TECHNICAL SPECIFICATIONS- Model: TR7700Q SII-S
- Imaging method: Stop-and-Go Imaging
- Top camera options: 12 / 21 / 25 Mpix
- Imaging resolution options: 2.5 µm, 5 µm, 5.5 µm, 7 µm, 8 µm
- Lighting: Multi-phase True Color LED (SWIR optional)
- Max imaging speed: 3.5 cm²/sec @2.5 µm; 13 cm²/sec @5 µm; 7.8 cm²/sec @5.5 µm; 24 cm²/sec @7 µm; 29 cm²/sec @8 µm
- Motion: Ballscrew + AC Servo (X/Z), Dual-driven ball screw + AC servo (Y)
- X-Y-Z axis resolution: 1 µm
- Max PCB size: up to 510 x 460 mm (platform-dependent); 2.5 µm mode: 285 x 150 mm
- PCB thickness: 0.6–5 mm
- Max PCB weight: 3 kg (optional 5 kg)
- Top clearance: 20 mm (varies with camera configuration)
- Bottom clearance: 40 mm
- Edge clearance: 3 mm (optional 4 / 5 mm)
- Conveyor inline height: 880–920 mm (SMEMA compatible)
- Inspection targets: wire bonding, die bonding, ball bonding, ribbon bond, wedge bond, SiP, underfill, SMD, bumps, solder joints
