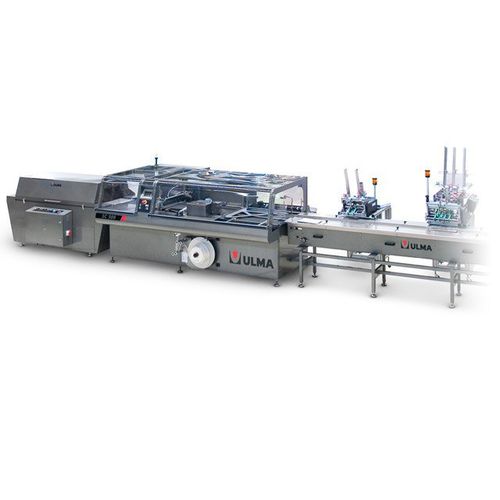

Automatic side-sealer SC 500

continuous

Short description
Automatic side-seal packaging machine for shrink and non-shrink films. Continuous feed design with fast changeovers; production up to 125 cycles/min.

DESCRIPTION
The SC 500 is an automatic continuous side-seal wrapper engineered to pack a wide range of single products and multipacks of variable lengths. It processes shrinkable and non-shrink films and can operate in continuous or intermittent (pack-by-pack) mode. Motorized adjustments and simple regulation allow quick format changes without tools. Side sealing avoids top and bottom seals to maximise product visibility. Control is provided by an industrial PC with a 5" touch screen for format memory, parameter setting and diagnostics.

BASIC EQUIPMENT

• Continuous in-line conveyor feeding with product separation and manual width adjustment.
• Motorized 90º reel holder with adjustable mechanical perforation and end-of-film detection.
• Side seal by heated rollers with temperature control and hot-knife cross seal with height adjustment.
• Motorized triangle former height and retractable infeed belt for easier film loading and changeover.
• Automatic film waste rewinder, film distribution device and film break detection; "no product - no bag" function.
• Industrial PC control with 5" touch screen, up to 100 product format memories and operation diagnostics.
• Protections and safety systems compliant with CE regulations.

OPTIONAL DEVICES

• Automatic pack format adjustment.
• Cross sealing bar and side sealing system for PE films.
• Film folding to centrefold and pneumatic or hot film perforation.
• Intermediate suction belt for light products; easy-open device for packages.
• Double reel holder; end-of-film light and sound alarm; printed-film centring device.
• Stainless-steel version; additional feeders, printers, labellers, conveyors and MODEM for remote diagnostics.

TECHNICAL SPECIFICATIONS

• Model: SC 500.
• Production capacity: up to 125 cycles/min (depending on product and format).
• Film compatibility: shrink and non-shrink films.
• Working modes: continuous and intermittent (pack-by-pack).
• Side seal: heated rollers with temperature regulation; cross seal: hot knife with height and temperature adjustment.
• Reel handling: motorized 90º reel holder; optional double reel holder.
• Control: industrial PC with 5" touch screen, 100 product memories and diagnostics.
• Safety: protections and safety systems compliant with CE.
