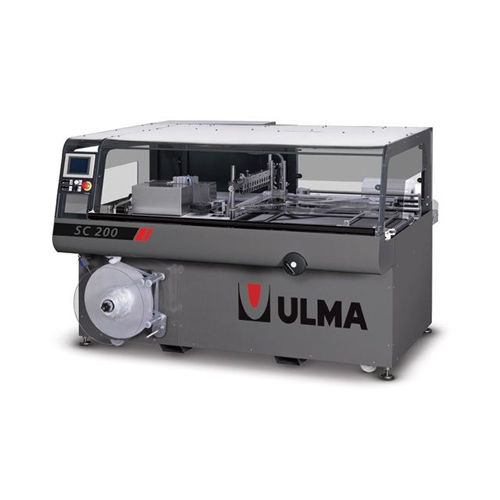

Automatic side-sealer SC 200

servo-drivencontinuousshrink packer

Short description
The SC 200 is an automatic side-seal packaging machine for shrink and non-shrink films, designed for industrial inline packaging of products of any length with speeds up to 85 cycles/min. Controlled by an industrial PC with touchscreen, it stores up to 100 product formats and provides diagnostics and parameter adjustment for production stability.

Basic equipment

• Automatic inline feeding on a conveyor with product separation and alignment; manual conveyor width regulation
• Motorized 90º film reel holder at waist height with adjustable mechanical perforator and film-end detection
• Movable infeed belt to facilitate film loading and change
• Triangle former height with motorized adjustment from the touchscreen
• Horizontal and vertical product detection photocells
• Cross-seal and cut by hot knife with temperature control; easy replacement
• Side seal by heated wheels with temperature regulation
• Side movement of the sealing head for tall products (optional)
• Pneumatic three-position cross-seal (standard models) or servo-driven cross-seal (S models)
• Motorized adjustment of cross-seal opening/closing from the screen with jaw safety system
• Solid-state relay for temperature stability of sealing systems
• Kissing conveyor belts for small or unstable packs (optional)
• Automatic film scrap winding with film break detection
• Industrial PC control and touchscreen panel; memory for up to 100 formats

Construction features

• Frame in laminated, painted steel tube
• Adjustable legs and transport wheels
• Standard machine direction: right to left (optional left to right)
• Easy access to components and ventilated electrical cabinet
• Operation diagnostics and on-screen messages
• Protections and safety systems compliant with CE norms

Optional devices

• Automatic pack format adjustment
• Motorized feed conveyor width regulation
• Cross-seal bar and side sealer for PE
• Split infeed belt for irregular/low products
• Film folding from flat to centerfold
• Air blower for film opening
• Independent speed control of side-seal system and outfeed conveyor
• Pneumatic hole punch; hot film perforation; film perforator for easy opening
• Overhead device; infeed belt extension 500 mm; double film reel holder
• End-of-film detector; printed-film centring device; coding systems; light/sound alarm; modem for diagnostics; stainless steel version

Technical specifications

• Maximum production: up to 85 cycles/min (depending on product and format)
• Compatible films: shrink and non-shrink films; option for PE-specific sealing
• Control: industrial PC with touchscreen and diagnostics
• Memory: up to 100 product formats
• Cross-seal: hot knife with temperature regulation (options: pneumatic or servo)
• Side-seal: heated wheels with temperature regulation; motorized reel holder with film-end detection
• Product detection: horizontal and vertical photocells
• Frame: laminated painted steel tube; ventilated electrical cabinet; CE safety compliance
• Standard orientation: right to left (optional left to right)
