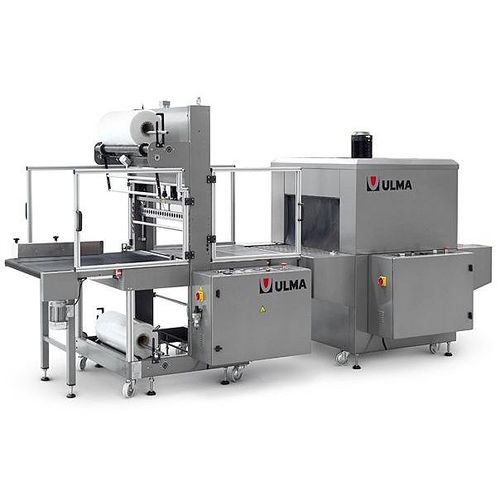

Automatic shrink wrapping machine SVAL

for heat-shrink film packageswith sealing barheat-shrink film

Description
Automatic inline sleeve wrapper ULMA SVAL with modular design for wrapping individual products or product groups with flat shrink film. The machine uses two flat film rolls that are cross-sealed; a full enclosure of the pack is not required. Suitable for a wide range of product lengths and formats.

Standard equipment

• Maximum product height: 350 mm.
• Production: up to 1,080 cycles/h depending on product and film.
• Powered in-feed belt, inline, with speed regulation for automatic loading.
• Powered reel holders (top and bottom).
• Sealing and cutting by hot clamp with electronic temperature control; low maintenance.
• Safety system integrated in the sealing clamp to protect operator and product.
• Pneumatic presser above the out-feed table to hold product during cutting and sealing.
• Powered out-feed belt with speed regulation.
• Simple-to-use control panel for all machine functions.

Construction features

• Modular design with heavy-duty frame in painted, laminated steel tube.
• Wheels and height-adjustable legs for transport and positioning.
• Machine flow orientation: right to left.
• Easy access for operation and maintenance.
• Ventilated electrical cabinet.
• Available in painted or stainless steel versions.
• Protections and safety systems according to CE standards.

Technical data / specifications

• Brand: ULMA.
• Model: SVAL.
• Packaging film: flat shrink film from two flat rolls, cross sealed.
• Max product height: 350 mm.
• Production capacity: up to 1,080 cycles/h (depending on product and film).
• In-feed: powered belt, inline, with speed regulation.
• Out-feed: powered belt with speed regulation.
• Reel holders: powered (top and bottom).
• Sealing & cutting: hot clamp with electronic temperature regulation.
• Operator safety: safety system in sealing clamp; CE-compliant protections.
• Pneumatic presser on out-feed table to hold product during sealing/cutting.
• Frame: heavy-duty painted/laminated steel tube; stainless steel version available.
• Mobility: wheels and height-adjustable legs.
• Orientation: right-to-left.
• Electrical cabinet: ventilated.
• User interface: simple control panel for machine functions.
