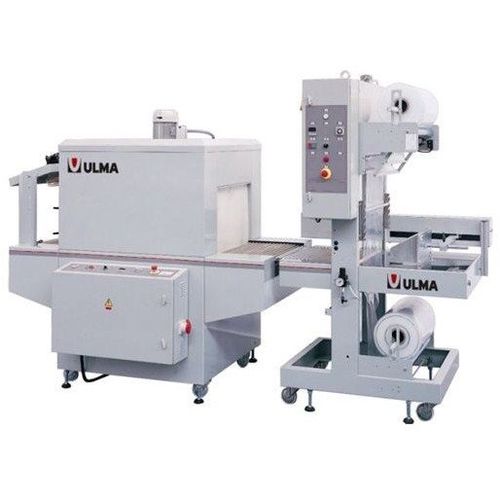

Semi-automatic shrink wrapping machine SVS

for heat-shrink film packagesheat-shrink film

Overview Semiautomatic sleeve wrapper ULMA model SVS 60x35 with modular design, for wrapping individual products and groups using flat shrink film. The machine uses two flat film rolls with cross sealing; complete pack closure is not required.

Standard equipment

• Maximum product height: 350 mm.
• Production: up to 600 cycles/h (depending on product and film).
• Stainless steel infeed table.
• Powered reel holders (top and bottom).
• Manual placement of products on the infeed table; pneumatic paddle activated by buttons.
• Pneumatic sealing.
• Sealing and cutting with hot clamp and electronic temperature regulation; low maintenance of the sealing clamp.
• Automatic cut-and-seal cycle triggered on paddle return.
• Safety system integrated in the sealing clamp to protect operator and product.
• Pneumatic presser on the exit table to stabilise product during cutting/sealing.
• Stainless steel exit table with gravity rollers.
• User-friendly control panel for all machine functions.

Construction features

• Modular machine design with heavy-duty painted and laminated steel tube frame.
• Wheels and height-adjustable feet for transport and positioning.
• Machine orientation: right to left.
• Easy access to all components for maintenance.
• Ventilated electrical cabinet.
• Protections and safety systems compliant with CE standards.

Technical specifications

• Model: SVS 60x35 (semiautomatic sleeve wrapper).
• Manufacturer: ULMA.
• Maximum product height: 350 mm.
• Production rate: up to 600 cycles/h (depending on product and film).
• Film system: two flat rolls of flat shrink film, cross sealed.
• Sealing/cutting: hot clamp with electronic temperature control; pneumatic seal; automatic cycle.
• Infeed: stainless steel table with manual placement and pneumatic paddle.
• Exit: stainless steel table with gravity rollers; pneumatic presser for product stabilisation.
• Reel holders: powered, top and bottom.
• Control: simple control panel for all functions.
• Construction: painted and laminated steel tube frame; wheels and adjustable feet.
• Electrical: ventilated electrical cabinet.
• Safety: sealing clamp safety system and CE-compliant protections.
