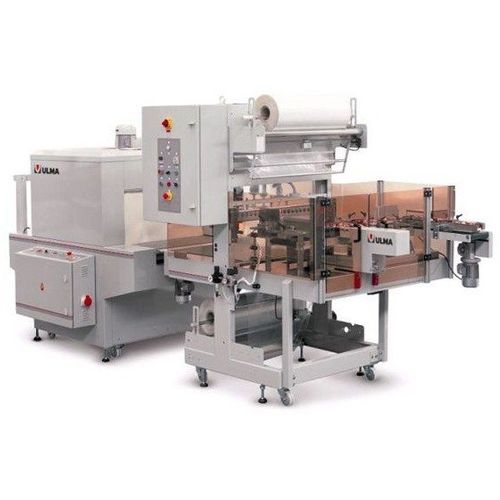

Automatic shrink wrapping machine SVAGT

for flat productsfor packagingin-line

Description
Automatic in-line sleeve wrapping machine SVAGT (ULMA), modular design, for wrapping groups of products and stacked items with flat shrink film. The machine runs two flat film rolls, cross-sealed; a fully closed pack is not required.

Standard equipment

• Maximum product height: 350 mm.
• Production up to 2,400 units/hour depending on product and film.
• Powered infeed belt, in-line, with speed regulation for automatic loading.
• Powered reel holders (top and bottom).
• Sealing and cutting with hot clamp with electronic temperature control; low maintenance.
• Safety system in the sealing clamp to protect operator and product.
• Pneumatic presser on the exit table to hold product during cutting/sealing.
• Powered outfeed belt with speed regulation.
• Simple-to-use control panel for all machine functions.

Construction features

• Modular machine design; heavy-duty frame in painted and laminated steel.
• Wheels and height-adjustable legs for transport and positioning.
• Machine orientation: right to left.
• Easy access to all elements for maintenance.
• Ventilated electrical cabinet.
• Available painted or stainless steel versions.
• Protections and safety systems according to CE standards.

Characteristics / technical specifications

• Model: SVAGT (ULMA).
• Type: Automatic in-line sleeve wrapping machine for shrink film (flat rolls, cross-sealed).
• Design: Modular.
• Maximum product height: 350 mm.
• Production capacity: up to 2,400 units/hour (depends on product and film).
• Infeed: Powered infeed belt with speed regulation for automatic loading.
• Outfeed: Powered outfeed belt with speed regulation.
• Film handling: Powered reel holders (top and bottom); two flat film rolls, cross-sealed.
• Sealing & cutting: Hot clamp with electronic temperature regulation and safety system; low maintenance.
• Pneumatic presser on exit table for product hold during cutting/sealing.
• Construction: Painted and laminated steel heavy-duty frame; option in stainless steel.
• Mobility: Wheels and height-adjustable legs.
• Orientation: Right → Left.
• Access & maintenance: Easy access to all elements; ventilated electrical cabinet.
• Safety: Protections and safety systems compliant with CE norms.
• Control: User-friendly control panel for machine functions.
