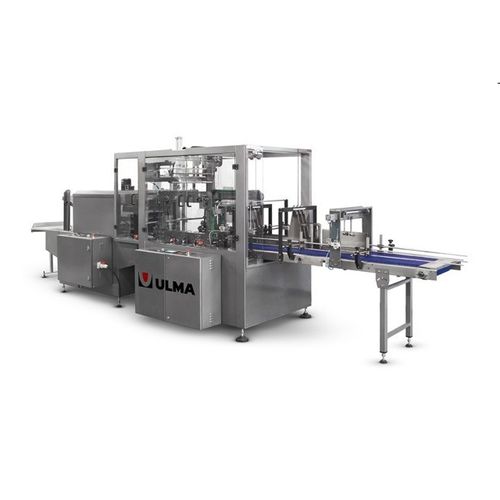

Automatic shrink wrapping machine EPB

sleeveheat-shrink filmfilm

DESCRIPTION
Inline automatic sleeve wrapper ULMA, model EPB. Modular design for shrink-sleeve wrapping of grouped products at a single height. The machine works with two flat film rolls sealed transversely; full closure of the pack is not required.

STANDARD EQUIPMENT

• Maximum product height: 350 mm.
• Production: up to 1,080 units/hour (depending on product and film).
• Powered infeed conveyor with speed regulation for automatic loading.
• Powered reel holders (top and bottom).
• Sealing and cutting by hot clamp with electronic temperature control; low maintenance.
• Safety system integrated in the sealing clamp to protect operator and product.
• Pneumatic presser on the outfeed table to hold product during seal/cut.
• Powered outfeed conveyor with speed regulation.
• Option to use cardboard plate.
• Simple-use control panel for all machine functions.

CONSTRUCTION FEATURES

• Modular machine design with heavy-duty frame in painted and laminated steel tube.
• Wheels and height-adjustable feet for transport and positioning.
• Machine flow: right to left.
• Easy access to all components for maintenance.
• Ventilated electrical cabinet.
• Available in painted or stainless-steel versions.
• Protections and safety systems according to CE standards.

TECHNICAL SPECIFICATIONS

• Model: EPB (ULMA).
• Packaging type: shrink-sleeve (flat film, cross-sealed).
• Maximum product height: 350 mm.
• Production capacity: up to 1,080 units/hour (depending on product and film).
• Feeding: motorized infeed conveyor with speed control.
• Outfeed: motorized outfeed conveyor with speed control.
• Reel holders: motorized top and bottom.
• Sealing/cutting: hot clamp with electronic temperature control.
• Optional: cardboard plate handling.
• Frame: painted/laminated steel tube; option stainless steel.
• Machine orientation: right → left.
• Compliance: CE safety protections; ventilated electrical cabinet.
