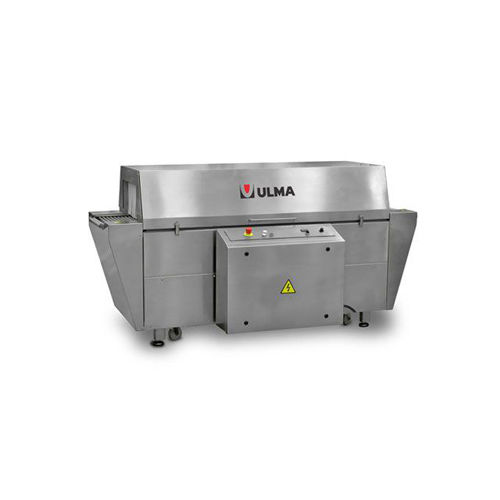

Electric shrink tunnel TR 300hot air
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Specifications
- hot air
Description
Overview
The TR 300 is a hinged-top shrink tunnel engineered for hot-air shrinking of Flow Pack (HFFS) and shrink-film wrapped products. It features a 1735 mm heat chamber and a stainless steel construction suitable for continuous high-speed production.
Description
The tunnel is equipped with a silicone-roller transport conveyor running at variable speed, adjustable via a potentiometer on the control panel. The hinged top cover provides rapid access to the interior for cleaning, maintenance and individual air-flow adjustment at each station.
Applications
Technical specifications
The TR 300 is a hinged-top shrink tunnel engineered for hot-air shrinking of Flow Pack (HFFS) and shrink-film wrapped products. It features a 1735 mm heat chamber and a stainless steel construction suitable for continuous high-speed production.
Description
The tunnel is equipped with a silicone-roller transport conveyor running at variable speed, adjustable via a potentiometer on the control panel. The hinged top cover provides rapid access to the interior for cleaning, maintenance and individual air-flow adjustment at each station.
Applications
- Shrinking Flow Pack (HFFS) and shrink-film packaged products by hot air
- High-speed production lines
Technical specifications
- Model: TR 300
- Construction material: Stainless steel
- Heat chamber length: 1735 mm
- Number of shrinking stations: Four stations
- Air flow: Two air flows per station
- Transport conveyor: Silicone rollers
- Conveyor speed: Variable, adjustable via potentiometer on control panel
- Top cover: Hinged top cover for easy access (cleaning, maintenance, air-flow adjustment)
- Designed for: High-speed applications
