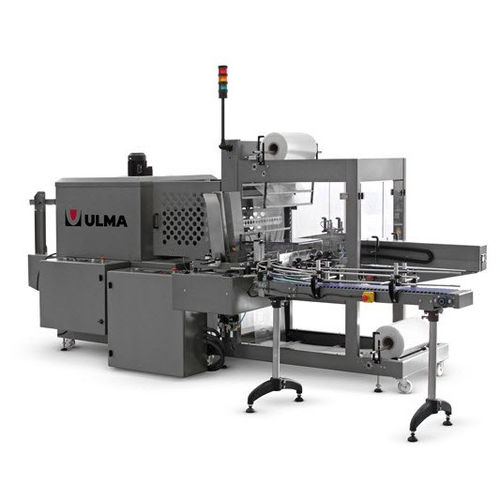

Automatic shrink wrapping machine SVA-90

for heat-shrink film packagesfor packagingheat-shrink film

Description
Automatic sleeve wrapper with 90° infeed, ULMA brand, model SVA-90, modular design to wrap with flat shrink film a wide range of individual products and multipacks. Sleeve wrapping machines work with two flat rolls of film that are cross-sealed; complete pack closing is not required.

Standard equipment

• Maximum product height: 350 mm.
• Production: up to 1,080 cycles/h depending on product and film.
• Powered 90° infeed belt with speed regulation for automatic loading.
• Powered reel holders (top and bottom).
• Product introduction and sealing by side cylinder (pusher) activated by sensors.
• Sealing and cutting with hot clamp and electronic temperature control; low maintenance of the sealing clamp.
• Safety system integrated in the sealing clamp to protect operator and product.
• Pneumatic presser over the outfeed table to hold the product during sealing and cutting.
• Stainless steel outfeed table with gravity rollers.
• Simple-use control panel for all machine functions.

Construction features

• Modular design; sturdy tubular steel frame.
• Wheels and height-adjustable legs for transport and positioning.
• Machine orientation: right to left.
• Easy access to all components for maintenance.
• Ventilated electrical cabinet.
• Available in painted or stainless steel versions.
• Protections and safety systems according to CE standards.

Technical specifications

• Model: SVA-90 (ULMA).
• Feed: 90° infeed, powered belt with speed regulation.
• Film system: two flat rolls of flat shrink film, cross-sealed.
• Maximum product height: 350 mm.
• Production capacity: up to 1,080 cycles/h (depending on product and film).
• Sealing & cutting: hot clamp with electronic temperature regulation; integrated cutter; low maintenance.
• Product handling: side cylinder (pusher) for introduction; pneumatic presser on outfeed table; stainless steel outfeed with gravity rollers.
• Reel holders: powered, top and bottom.
• Construction: modular tubular steel frame; painted or stainless versions.
• Controls: user-friendly control panel; ventilated electrical cabinet.
• Compliance: protections and safety systems according to CE norms.
