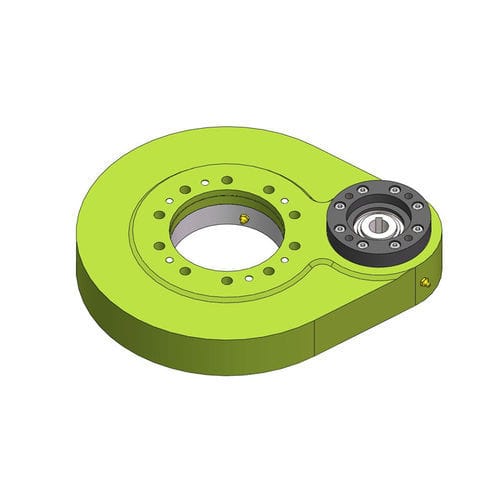

Slewing drive S-I-O-0229

Slewing drive - S-I-O-0229 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0229 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0229 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 2,659 Nm
(1,961.177755 ft.lb)

Max.: 3,062 Nm
(2,258.415301 ft.lb)

Gear ratio

5.4 unit

Description

/Module - M - mm - 4 Teeth number of wheel - Z2 - － - 81 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 162 Axial static load - Co ax - KN - 471 Radial dynamic load - Crad - KN - 154 Axial dynamic load - Cax - KN - 181 Weight - W - Kg - 49.2
