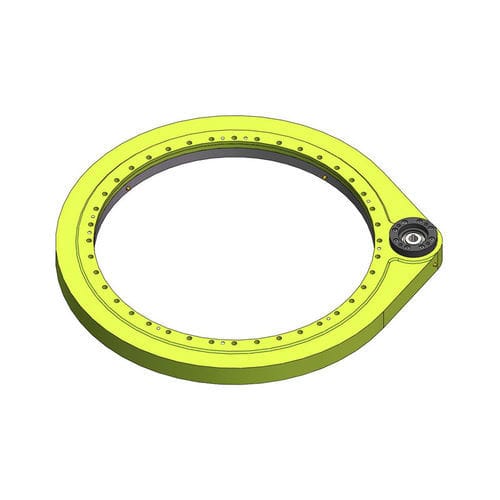

Slewing drive S-I-O-0841
Add to favorites
Compare this product
Characteristics
- Torque
Min.: 6,456 Nm
(4,761.701236 ft.lb)Max.: 8,954 Nm
(6,604.131485 ft.lb)- Gear ratio
15.4 unit
Description
Module - M - mm - 4
Teeth number of wheel - Z2 - － - 231
Teeth number of pinion - Z1 - － - 15
Radial static load - Co rad - KN - 574
Axial static load - Co ax - KN - 1538
Radial dynamic load - Crad - KN - 255
Axial dynamic load - Cax - KN - 299
Weight - W - Kg - 131.4
Catalogs
Spur Gear Slewing Drive Catalog
36 Pages
