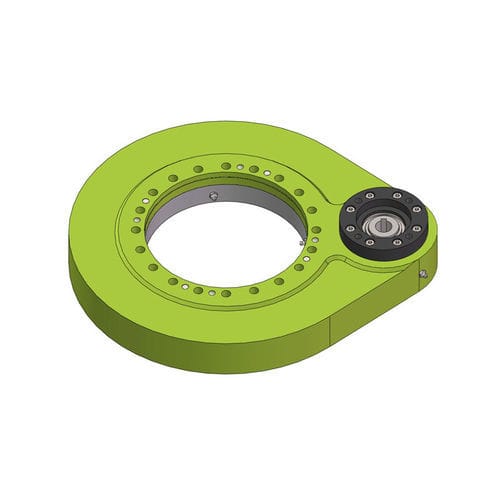

Slewing drive S-I-O-0311

Slewing drive - S-I-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 2,706 Nm
(1,995.843176 ft.lb)

Max.: 3,837 Nm
(2,830.025967 ft.lb)

Gear ratio

6.8 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 102 Teeth number of pinion - Z1 - － - 15 Gear ratio - i - － - 6.80 Radial static load - Co rad - KN - 212 Axial static load - Co ax - KN - 568 Radial dynamic load - Crad - KN - 175 Axial dynamic load - Cax - KN - 204 Weight - W - Kg - 60.2
