Slewing drive S-I-O-1091

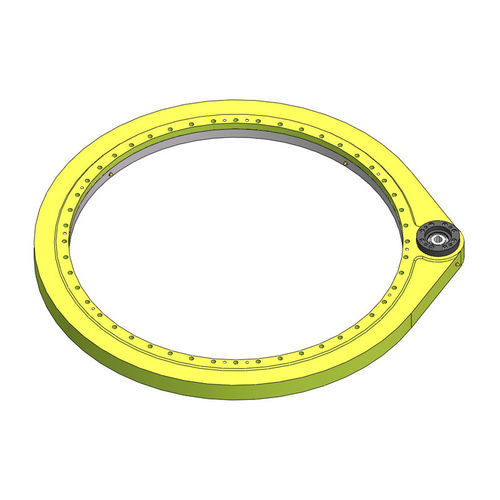

Slewing drive - S-I-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-1091 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 8,247 Nm
(6,082.675045 ft.lb)

Max.: 11,395 Nm
(8,404.520691 ft.lb)

Gear ratio

19.6 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 294 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 746 Axial static load - Co ax - KN - 1996 Radial dynamic load - Crad - KN - 281 Axial dynamic load - Cax - KN - 327 Weight - W - Kg - 168.3

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-I Light load series
