Slewing drive S-I-O-0941

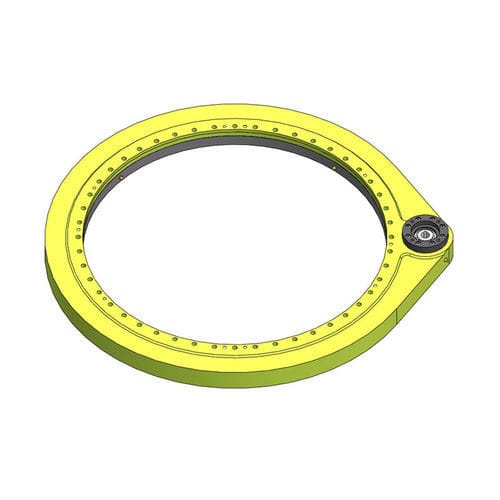

Slewing drive - S-I-O-0941 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0941 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0941 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 7,181 Nm
(5,296.433794 ft.lb)

Max.: 9,923 Nm
(7,318.829207 ft.lb)

Gear ratio

17.2 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 258 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 643 Axial static load - Co ax - KN - 1722 Radial dynamic load - Crad - KN - 265 Axial dynamic load - Cax - KN - 311 Weight - W - Kg - 152.9

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-I Light load series
