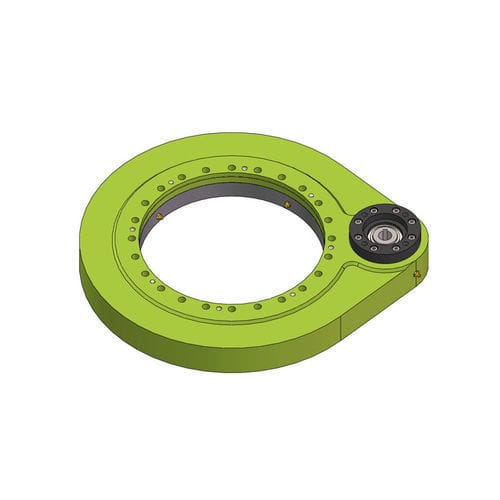

Slewing drive S-I-O-0411

Slewing drive - S-I-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0411 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 3,415 Nm
(2,518.77474 ft.lb)

Max.: 4,806 Nm
(3,544.723689 ft.lb)

Gear ratio

8.4 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 126 Teeth number of pinion - Z1 - － - 15 Max holding torque - Mh - N.m - 4806 Radial static load - Co rad - KN - 281 Axial static load - Co ax - KN - 751 Radial dynamic load - Crad - KN - 194 Axial dynamic load - Cax - KN - 226 Weight - W - Kg - 73.4
