Slewing drive S-I-O-0641

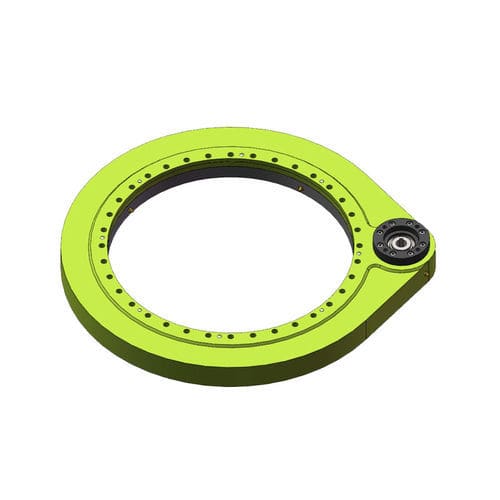

Slewing drive - S-I-O-0641 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0641 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0641 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 5,019 Nm
(3,701.824427 ft.lb)

Max.: 7,016 Nm
(5,174.736039 ft.lb)

Gear ratio

12.2 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 183 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 438 Axial static load - Co ax - KN - 1172 Radial dynamic load - Crad - KN - 231 Axial dynamic load - Cax - KN - 269 Weight - W - Kg - 107.4

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-I Light load series
