Slewing drive S-I-O-0541

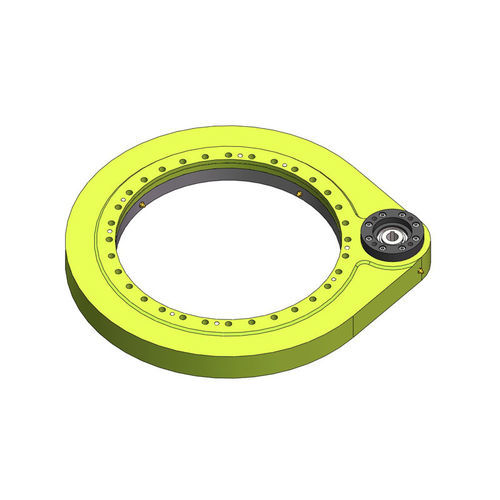

Slewing drive - S-I-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-I-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 4,328 Nm
(3,192.168982 ft.lb)

Max.: 6,047 Nm
(4,460.038317 ft.lb)

Gear ratio

10.4 unit

Description

Module - M - mm - 4 Teeth number of wheel - Z2 - － - 156 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 369 Axial static load - Co ax - KN - 989 Radial dynamic load - Crad - KN - 216 Axial dynamic load - Cax - KN - 253 Weight - W - Kg - 88.3

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-I Light load series
