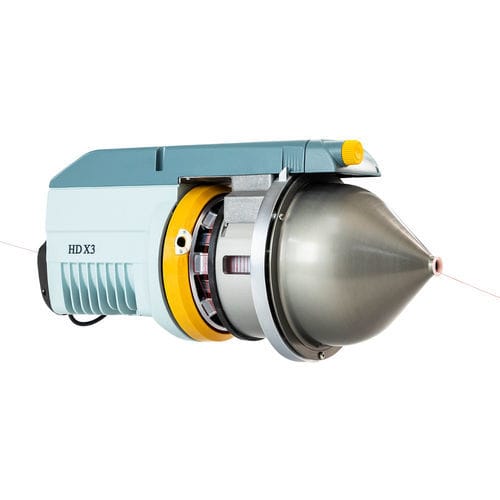

Fabric feeder IRO HD X3

yarnfor big bagshigh-speed

Product description
IRO HD X3 is a weft feeder engineered for demanding applications on projectile and rapier weaving machines. It handles thick monofilament, thick filament yarns and coarse natural fibres used in technical textiles, ground-support materials and bags, and is designed for high take-off speeds and dusty production environments.

Suitable yarns and materials

• Monofilament 0.8–2.5 mm diameter
• Jute
• Aramid fibre
• Carbon fibre
• Polyester
• Nylon
• Polypropylene (flat tape)
• Glass fibre

Design features

• Balloon control design — quick release and adjustable funnel position for reliable balloon management
• Robust yarn input — input eyelet fixed with screws for enhanced durability
• Voltage power supply boxes with reliable transformer technique available in 4‑colour or 8‑colour executions

Technical data

• Model: IRO HD X3
• Maximum speed: 1800 m/min
• Yarn count range: 120 - 0.8 Nm and 20 - 5000 dTex
• Winding direction: S and Z
• Yarn separation: 5 mm
• Yarn passage: 9 mm
• Sensor systems: Mechanical
• Spoolbody diameter: 135 mm
• Dimensions (H x L x W): 190 x 345 x 150 mm
• Weight: 14 kg
