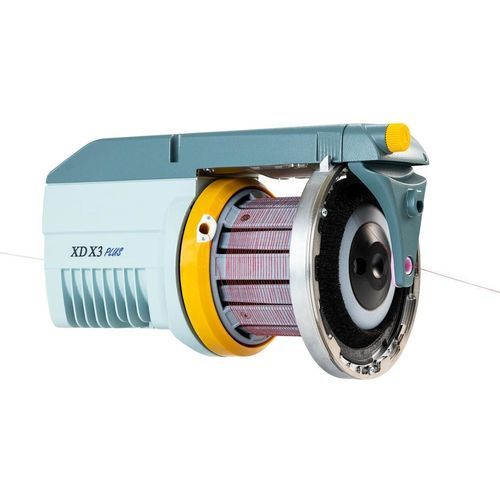

Yarn feeder IRO XD X3 plus

high-speedhigh-performance

Product description
IRO XD X3 plus is the weft feeder designed for extremely demanding applications such as flat polypropylene tape, roving material and other highly dusty materials produced on projectile or rapier weaving machines, typically used in technical textiles, geotextiles and bag production.

Application and purpose
This weft feeder is engineered for applications where the weft yarn is thick monofilament, thick filament yarns or jute yarns and where take-off speed is critical. It is widely used on rapier machines for flooring production and on wide paper-wire machines under extreme conditions.

Suitable yarns / materials

• Monofilament 0.8 - 2.5 mm diameter
• Jute
• Aramid fibre
• Carbon fibre
• Polyester
• Nylon
• Polypropylene
• Glass fiber

Power supply
Voltage power supply boxes with reliable transformer technology are available in 4-colour or 8-colour configurations.

Technical data
IRO XD X3 plus — Maximum speed: 1800 m/min
Yarn count range: 120 - 0.8 Nm and 20 - 5000 dTex
Winding direction: "S" and "Z"
Yarn separation: 5 mm
Yarn passage: 9 mm
Sensor systems: Optical
Spoolbody diameter: 135 mm
Dimensions: 190 mm height, 345 mm length, 150 mm width
Weight: 14 kg

Characteristics / technical specifications

• Maximum speed: 1800 m/min
• Yarn count range: 120 - 0.8 Nm and 20 - 5000 dTex
• Winding direction: "S" and "Z"
• Yarn separation: 5 mm
• Yarn passage: 9 mm
• Sensor systems: Optical
• Spoolbody diameter: 135 mm
• Dimensions (HxLxW): 190 mm x 345 mm x 150 mm
• Weight: 14 kg
