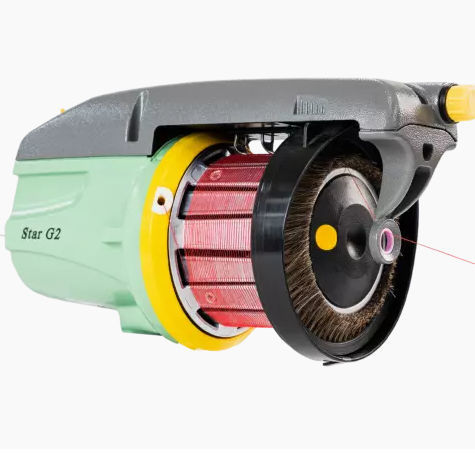

Mechanical feeder Star G2

yarnmotor-drivenmagnetic

Overview
The IRO Star G2 integrates recent feeder developments into a compact weft feeder. Designed for medium-range speeds of modern weaving machines and as a direct replacement on older looms, Star G2 units use maintenance-free permanent magnet motors for low energy consumption and reliable torque. Note: Star G2 can only be fitted with a brush ring for balloon control.

Components

• S/Z Switch — Sets winding direction (S and Z) or activates standby mode.
• Mechanical sensor system — Improved sensor provides precise tension control and includes an integrated yarn-break sensor.
• Easy balloon adjustment — Adjustable knob for accurate brush-ring tuning even during operation.
• Separation setting — Stepless yarn separation adjustment without tools.
• Spool body — Surface-treated spool body handles a wide yarn range to ensure optimal take-off tension and reduced dust generation.
• Permanent magnet motor — Maintenance-free motor delivering high torque across speeds with low operating temperature and energy use.
• Soft spool body seal — Prevents dust and lint ingress to the ball bearings.

Technical data
Maximum speed: 1200 m/min
Yarn count range: 120 – 2 Nm and 20 – 3500 dTex
Winding direction: S and Z
Yarn separation: 2.2 mm
Sensor systems: Mechanical (integrated yarn break sensor)
Spoolbody diameter: 110 mm
Dimensions (H x L x W): 190 mm x 305 mm x 150 mm
Weight: 4.7 kg
Motor: Permanent magnet motor (maintenance-free, low energy consumption)

Specifications

• Maximum speed: 1200 m/min
• Yarn count range: 120 – 2 Nm and 20 – 3500 dTex
• Winding direction: S and Z
• Yarn separation: 2.2 mm
• Sensor systems: Mechanical (includes integrated yarn break sensor)
• Spoolbody diameter: 110 mm
• Dimensions (H x L x W): 190 mm x 305 mm x 150 mm
• Weight: 4.7 kg
• Motor: Permanent magnet motor (maintenance-free, low energy consumption)
