AC power module MI-AIM™

Overview
The MI-AIM™ AC input module interfaces directly with 115 V AC mains to provide line rectification, EMI filtering, transient/spike protection and inrush current limiting. It delivers up to 250 W to support Vicor Mi‑x7x family full‑brick and half‑brick converters and is designed for MIL‑COTS military and aerospace power systems.

Compliance

• CE102 conducted emissions — MIL‑STD‑461D/E
• Input transient and spike requirements — MIL‑STD‑704A
• Environmental test requirements — MIL‑STD‑810

Features and benefits

• Integrated AC front‑end: rectification, EMI filtering, transient protection and inrush limiting
• Compatible with Vicor MI‑x7x family (supports full‑brick and half‑brick modules)
• 250 W output capability to support Mi‑x7x converters
• Available in M‑Grade and I‑Grade variants for system qualification
• Board‑level half‑brick mounting and wide operating temperature range for airborne and ground MIL applications

Variants

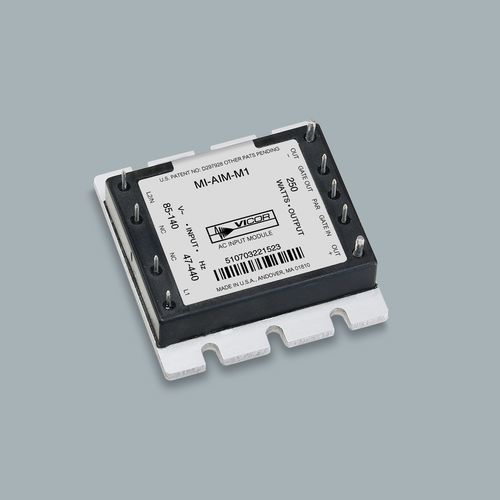

• MI‑AIM‑M1 — M‑Grade; Compatible MI‑Series: MI‑27x / MI‑J7x; Temp: -55 to +85 °C (up to +100 °C specified); Half‑brick
• MI‑AIM‑I1 — I‑Grade; Compatible MI‑Series: MI‑27x / MI‑J7x; Temp: -55 to +85 °C (up to +100 °C specified); Half‑brick

Technical specifications

• Function: AC input front‑end (rectifier, EMI filter, transient protection, inrush limiter)
• Nominal input: 115 V AC
• Output power capability: 250 W (supports Mi‑x7x converters)
• Compatibility: Vicor Mi‑x7x full‑brick and half‑brick modules; compatible MI‑Series: MI‑27x / MI‑J7x
• Converter grades: M‑Grade (MI‑AIM‑M1), I‑Grade (MI‑AIM‑I1)
• Operating temperature (board‑level): -55 °C to +85 °C (up to +100 °C specified)
• Mounting style: Half‑brick
• Standards: MIL‑STD‑461D/E (CE102), MIL‑STD‑704A, MIL‑STD‑810
• Protections: EMI filtering, transient/spike protection, inrush current limiting
• Documentation: Outline drawing and datasheet available from the manufacturer
