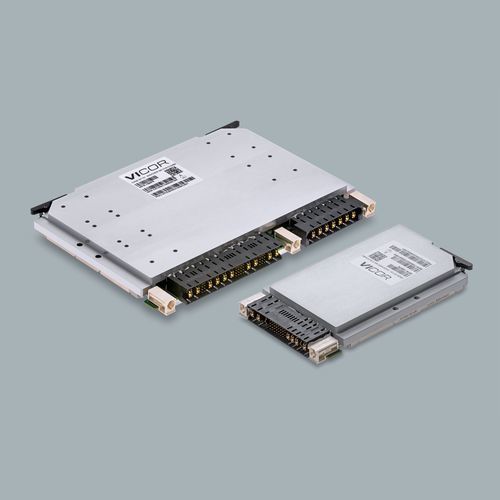

3U power supply VITA 62

AC/DC

Overview
These MIL‑COTS power supplies are designed for 3U and 6U OpenVPX systems. Environmentally robust, conduction‑cooled devices that operate from nominal 28V DC or 270V DC inputs. Standard VITA 62 output voltages range from 3.3V to 12V. 3U models deliver up to 600W; 6U models deliver up to 1000W. Custom output voltages and power levels are available by request. The product family is fully tested to MIL‑STD 461G and MIL‑STD 704F. The 28V input variants additionally meet MIL‑1275E.

Features and benefits

• Scalable OpenVPX compliant form‑factor (3U and 6U)
• Operates from nominal 28V DC or 270V DC inputs
• Standard outputs from 3.3V to 12V
• 3U up to 600W, 6U up to 1000W
• Conduction cooled for rugged environments
• Overcurrent, overvoltage and overtemperature protections
• Military standard compliance: MIL‑STD 704F, 461G, 810G, 1275E (28V variants)
• No electrolytic capacitors (improved reliability)
• Parallelable output configurations available

Product family — example part numbers (matrix)
Header: Part Number | Nominal Input (V) | Power (W) | Form‑Factor | Conformal Coated | Output Voltage Config. | Differentiating Features
VITHU270H3U50C01* | 270 | 600 | 3U | Coated | Parallelable | (—)
VIT270H3U600C002 | 270 | 600 | 3U | Coated | Parallelable | (—)
VIT270H3U600C000 | 270 | 600 | 3U | Coated | Parallelable | VITA 62.0 standard
VIT270H3U600A000 | 270 | 600 | 3U | Coated | Parallelable | VITA 62.2 high‑altitude
VIT028H6U1000C000 | 28 | 1000 | 6U | Coated | Parallelable | (—)
VIT028H3U600D000 | 28 | 600 | 3U | Coated + Au‑plated Connector | Parallelable | (—)
VIT028H3U600C000 | 28 | 600 | 3U | Coated | Parallelable | (—)
VIT3P28H3U750C1 | 115 VAC LTN | 750 | 3U | Coated | Parallelable | (—)

Resources & design support (examples)

• Evaluation board: Part Number VIT3UDCTEST01; User Guide UG‑801 – VITA62 3U Evaluation Board
• Application notes: AN:801 – Parallel Operation; AN:803 – I²C Communication for 28V Input VITA 62
• Datasheets for family part numbers and configurations (multiple datasheets per part variant)
• Case study: VITA 62 increases existing power specs necessary for aircraft pod‑mounted power supply

Technical specifications

• Nominal input voltages: 28 V DC or 270 V DC (family dependent)
• Standard output voltages: 3.3 V to 12 V
• Power ratings: 3U models up to 600 W; 6U models up to 1000 W
• Cooling: Conduction‑cooled (rugged environments)
• Protections: Overcurrent, overvoltage, overtemperature
• Output configurations: Parallelable outputs supported
• Military/tested standards: MIL‑STD 704F, MIL‑STD 461G, MIL‑STD 810G; 28V variants meet MIL‑1275E
• Conformal coating: Options available (Coated, Coated + Au‑plated connector)
• Evaluation hardware: 3U evaluation board and user guide available
