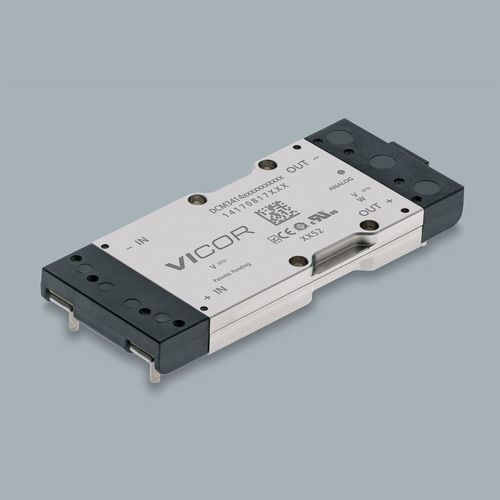

Regulated DC/DC converter DCM®

isolatedchassis-mountedindustrial

Overview
The DCM® DCM3414B50M17C2C09 is an isolated, regulated DC-DC converter module in the 3414 VIA package. It delivers up to 320 W at a 15 V output from a 28 V nominal input and is designed for reliable operation in demanding environments with integrated EMI and transient filtering and multiple protection features.

Key specifications

• Input Voltage: 28 V DC (nominal)
• Output Voltage: 15 V DC (nominal)
• Output Power: 320 W
• Package: 3414 VIA
• Dimensions: 85.93 x 35.54 x 9.4 mm (3.38 x 1.4 x 0.37 in)

Product features

• Output overvoltage protection (OVP)
• Input undervoltage lockout (UVLO)
• Overtemperature protection (OTP)
• Integrated EMI and transient filtering
• High power density and efficiency
• Multiple mounting styles: Board Mount Short Pin, Board Mount Long Pin, Chassis Mount

Packaging & options
Available in 3414 VIA through-hole long-pin board-mount and chassis-mount configurations. Mounting style options include Board Mount Short Pin, Board Mount Long Pin and Chassis Mount. Product grade options: T (-40°C to 125°C), C (-20°C to 125°C) and M (-55°C to 125°C). Control interface: Analog.

Ordering & availability
Part Number: DCM3414B50M17C2C09
Lead time: 40 weeks
Minimum order quantity: 1

Pricing (MSRP)

• 1+ : $911.49
• 10+ : $724.18
• 25+ : $660.83
• 100+ : $619.81

Reference materials & resources

• Datasheet
• Application notes: AN029, AN030, AN035, AN039, AN401
• Safety approvals: cURus, cTÜVus, CE Mark, CB Certificate (as listed)
• Mechanical drawings and 3D models

Technical specifications

• Product family: DCM® (DC-DC Converter Module)
• Model / series: DCM3414
• Part number: DCM3414B50M17C2C09
• Input voltage (nominal): 28 V DC
• Output voltage (nominal): 15 V DC
• Output power: 320 W
• Package: 3414 VIA
• Dimensions: 85.93 x 35.54 x 9.4 mm
• Mounting styles: Board Mount Short Pin / Board Mount Long Pin / Chassis Mount
• Product grades: T (-40°C to 125°C), C (-20°C to 125°C), M (-55°C to 125°C)
• Control interface: Analog
• Protections: OVP, UVLO, OTP
• Integrated functions: EMI and transient filtering
• Lead time: 40 weeks
• Minimum order quantity: 1
