Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product family
DCM® DC-DC Converter Module

Overview

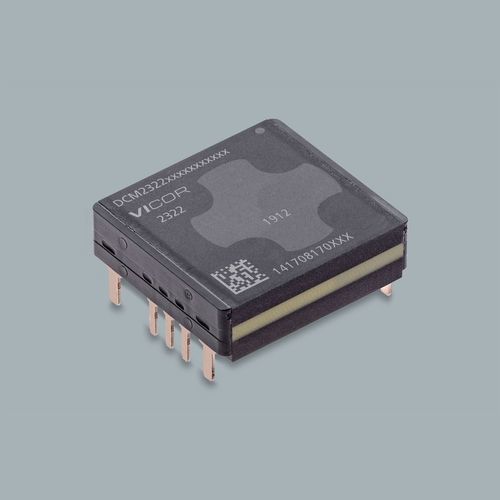

The DCM2322T50T2660T60 is an isolated, regulated DC-DC converter module in the 2322 ChiP through-hole package. It accepts a nominal 30 V input and provides a regulated 24 V output at up to 60 W. The module uses ZVS high-frequency (MHz) switching and meets Safety Extra Low Voltage (SELV) requirements. It is optimized for parallel array operation up to eight units for higher-power systems.

Key product data

• Input voltage (typical): 30 V
• Output voltage (nominal): 24 V
• Output power: 60 W
• Package: 2322 ChiP through-hole
• Dimensions (L×W×H): 24.84 × 22.8 × 7.21 mm

Product features

• Isolated, regulated DC-DC converter
• Safety Extra Low Voltage (SELV) compliance
• ZVS high-frequency (MHz) switching
• Wide input voltage range
• Optimized for array (parallel) operation up to 8 units

Production & purchasing information
Part Number: DCM2322T50T2660T60
Lead time: 40 weeks
Minimum order quantity: 25
Pricing (MSRP): 25+ qty = $123.45; 100+ qty = $115.79
Distributor stock (updated Apr. 22, 2026): Digi-Key: 249; Mouser: 1; Arrow: 0; Avnet: 0

Available options

• Product Grade: T = -40°C to 125°C (selected), M = -55°C to 125°C
• Mounting style: Through Hole

Related resources (documents & guides)
Datasheet, design guide and application notes (single DCM, parallel DCMs, soldering guidelines, high-accuracy regulation, thermal management), evaluation board user guide and safety approval documents are available for the DCM2322 family.

Technical specifications

• Part number: DCM2322T50T2660T60
• Input voltage: 30 V
• Output voltage: 24 V
• Output power: 60 W
• Package: 2322 ChiP through-hole
• Dimensions: 24.84 × 22.8 × 7.21 mm (0.978 × 0.898 × 0.284 in)
• Operating temperature grades: T (-40°C to 125°C), M (-55°C to 125°C)
• Array capability: up to 8 units in parallel
• Safety: SELV compliant; safety approval documents available
• Lead time: 40 weeks; MOQ: 25
• Price steps: 25+ = $123.45; 100+ = $115.79
