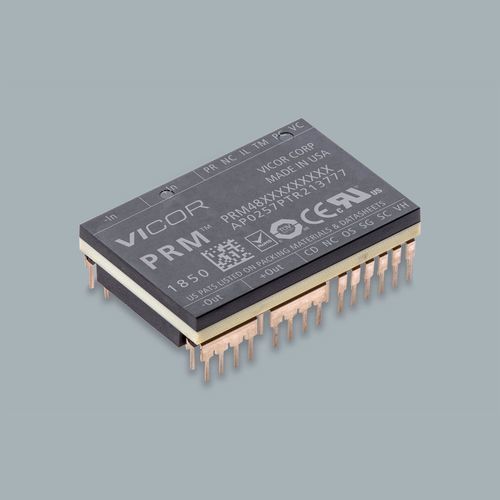

Regulated DC/DC converter PRM®

non-isolatedfor telecommunications equipmentsingle-output

Overview
Part number: MPRM28AT360M120A00. Product family: PRM® Regulator. FULL ChiP package. High-efficiency, high-density ZVS buck-boost regulator with approx. 1 MHz switching frequency, suitable for surface-mount or through-hole mounting; mix-and-match full and half-chip options available.

Key electrical characteristics

• Input Voltage: 28 V
• Output Voltage: 36 V
• Output Power: 200 W
• Switching Frequency: ~1 MHz (ZVS buck-boost)

Mechanical / packaging

• Package: FULL ChiP package (full-chip)
• Dimensions: 1.28 x 0.866 x 0.265 in / 32.5 x 22.0 x 6.73 mm
• Mounting Style: Through Hole (SMD / pick & place compatible)

Ordering & availability

• Lead time: 40 weeks
• Minimum order quantity: 25

Pricing
Quantity
25+ — $193.26
100+ — $181.27

Product features

• ZVS buck-boost topology
• High efficiency
• High power density
• ~1 MHz switching frequency
• Very low profile
• Pick & place / SMD compatible
• Surface-mount or through-hole package
• Mix-and-match full and half-chip products
• Meets MIL-STD-1275 and MIL-STD-704

Reference materials

• Data sheet
• Application notes
• Safety and approvals documentation
• Design files and evaluation board resources

Technical specifications

• Part Number: MPRM28AT360M120A00
• Product family: PRM® Regulator
• Manufacturer: Vicor
• Input voltage: 28 V
• Output voltage: 36 V
• Output power: 200 W
• Switching: ~1 MHz (ZVS buck-boost)
• Package: FULL ChiP; options for full/half chip and SMD or through-hole
• Dimensions: 1.28 x 0.866 x 0.265 in / 32.5 x 22.0 x 6.73 mm
• Mounting style: Through Hole (SMD compatible)
• Product grade / temperature: M = -55°C to 125°C
• Lead time: 40 weeks
• Minimum order quantity: 25
• Pricing tiers (example): 25+ $193.26; 100+ $181.27
