Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product overview

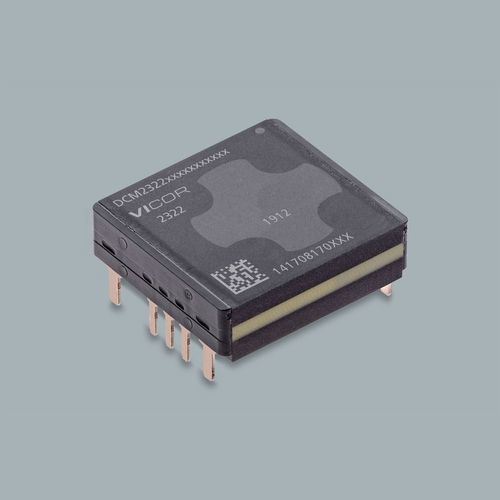

DCM2322T50T1360M60 is an isolated, regulated DC-DC converter module in a 2322 ChiP through-hole package, designed for MIL-COTS and industrial applications requiring SELV and high-reliability power conversion. It features ZVS MHz switching, a wide input range and supports array operation up to 8 units for higher power.

Key specifications

• Input voltage: 30 V
• Output voltage: 12 V
• Output power: 60 W
• Package: 2322 ChiP through-hole (24.84 x 22.8 x 7.21 mm)
• Temperature grade: M = -55°C to 125°C (option)

Pricing (MSRP)

• 25+ : $220.62
• 100+ : $206.92

Product features

• Isolated, regulated DC-DC converter (SELV)
• ZVS high-frequency (MHz) switching for improved efficiency
• Wide input range
• Optimized for array operation up to 8 units for higher power applications
• Suitable for MIL-STD-704 (E+F) and MIL-STD-1275 environments
• 2322 ChiP through-hole package for reliable PCB mounting

Product identifiers and logistics
Part Number: DCM2322T50T1360M60
Product family: MIL-COTS DCM
Lead time: 40 weeks
Minimum order quantity: 25

Technical specifications

• Input voltage: 30 V
• Output voltage: 12 V
• Output power: 60 W
• Package dimensions: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm
• Isolation: SELV isolated converter
• Switching: ZVS MHz switching
• Array capability: up to 8 units
• Mounting: Through Hole
• Standards: MIL-STD-704 (E+F), MIL-STD-1275

Applications
Designed for military and industrial power systems requiring isolated, regulated outputs and scalable power via parallel arrays, including vehicle, avionics and defense electronics.
