LFP battery 4C

for UPS

Overview

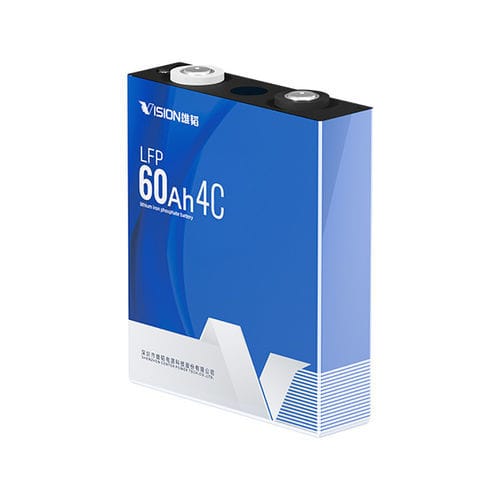

LFP-60Ah4C is a lithium iron phosphate (LiFePO4) battery cell designed for high-rate discharge and fast-charge applications. It provides 60 Ah nominal capacity and supports continuous discharge at 4C (up to 240 A), making it suitable for UPS, backup power, compact power systems and energy storage modules. The cell delivers reliable pulse current capability and improved safety characteristics for industrial deployment.

Application scenarios

• UPS and emergency power systems
• Backup power for critical equipment
• Small power devices and compact power packs
• Stationary and modular energy storage systems

Key features

• 4C continuous discharge — supports sustained currents up to 240 A for high-power demands.
• Fast charging — cell chemistry and design enable recharge within approximately 1 hour.
• Pulse discharge capability — supports 360 A pulse discharge for 10 seconds to meet instantaneous high-current needs.
• Short-term backup — provides at least 15 minutes of backup depending on application and system configuration.
• Enhanced safety and cycle stability — optimized electrolyte and modified anode materials improve thermal stability and cycle life.
• Eco-conscious manufacturing — produced with environmentally friendly materials and compliant with safety standards.

Technical specifications

• Model: LFP-60Ah4C
• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Nominal capacity: 60 Ah
• Continuous discharge rate: 4C (continuous current up to 240 A)
• Pulse discharge: 360 A for 10 seconds
• Fast charge capability: supports charging within 1 hour
• Short-term backup duration: at least 15 minutes (application dependent)
• Electrolyte / anode: high-conductivity electrolyte and modified anode materials
• Environment: manufactured with eco-friendly materials
