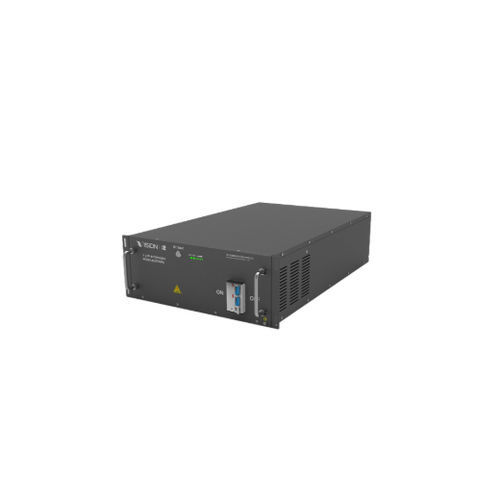

LFP battery system REVO

modularfor UPSoff-grid

Overview
The REVO Series is Vision Group's independently developed lithium battery product line designed for various UPS applications. The REVO Single-Phase SP Series features an integrated all-in-one design, offering compact size, easy maintenance, and flexible configuration options.

Application Scenarios

• Data Centers
• Financial Institutions
• Rail Transit
• Power Backup for Off-Grid Areas

Battery Quick Facts

• Battery Type: Lithium Iron Phosphate (LFP)
• Battery Discharge Efficiency: >90%
• Design Life: 15 years

Key Features

• Modular Design: supports both internal and external battery module installation for easy integration and optimized space usage
• Multi-Level Management Architecture: compatible with secondary and tertiary BMS systems; supports parallel operation of battery packs and flexible future expansion
• Multi-Protocol Communication Compatibility: supports CANBUS and MODBUS protocols for integration with UPS hosts and supervisory systems
• High-Precision Monitoring: voltage control accuracy within ±3mV and temperature management accuracy of ±1°C to ensure cell consistency and stable operation

Specification
Model | Capacity | Cell Model | Series-parallel connection | Size (mm) Length*Width*Height | Nominal Energy (kwh)
SP12-9 | 12.8V9AH | 12.8V9AH | 4S1P | 152*65*98 | 0.115
SP12-100 | 12.8V100AH | 3.2V100AH | 4S1P | 330*171*220 | 1.28
SP12-200 | 12.8V200AH | 3.2V100AH | 4S2P | 522*238*223 | 2.56
SP36-50 | 38.4V50AH | 3.2V50AH | 12S1P | 442*350*189 | 1.92
SP36-100 | 38.4V100AH | 3.2V100AH | 12S1P | 442*420*177 | 3.84
SP36-200 | 38.4V200AH | 3.2V100AH | 12S2P | 440*610*174 | 7.68
SP48-50 | 48V50AH | 3.2V50AH | 15S1P | 442*470*149 | 2.4
SP48-100 | 48V100AH | 3.2V100AH | 15S1P | 442*470*149 | 4.8
SP51.2-50 | 51.2V50AH | 3.2V50AH | 16S1P | 442*500*177 | 2.56
SP51.2-100 | 51.2V100AH | 3.2V100AH | 16S1P | 442*500*177 | 5.12
SP51.2-200 | 51.2V200AH | 3.2V100AH | 16S2P | 442*900*149 | 10.24
SP72-50 | 72V50Ah | 3.2V50AH | 23S1P | 440*650*174 | 3.68
SP72-100 | 72V100Ah | 3.2V100AH | 23S1P | 440*650*174 | 7.36
SP192-9 | 192V9Ah | 12.8V9AH | 15S1P | 442*800*149 | 1.72
SP192-28 | 192V28Ah | 3.2V6AH | 60S5P | 440*700*174 | 5.37

Technical specifications

• Manufacturer/Brand: Vision Group
• Product line: REVO Single-Phase SP Series
• Chemistry: Lithium Iron Phosphate (LFP)
• Design life: 15 years
• Discharge efficiency: >90%
• Voltage control accuracy: ±3mV
• Temperature management accuracy: ±1°C
• Communication protocols: CANBUS, MODBUS
• Modular, supports internal and external battery modules and parallel operation
• Applications: Data centers, financial institutions, rail transit, off-grid backup power
