Three-phase UPS REVO

lithium-ionLFPmodular

Overview

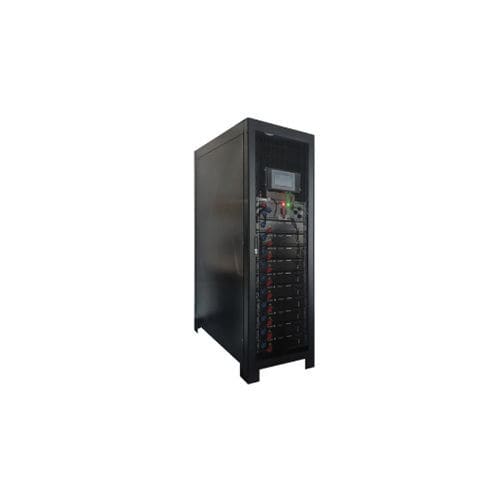

The REVO three-phase UPS lithium-ion battery system uses Lithium Iron Phosphate (LFP) cells and a four-level safety protection architecture. It provides cabinet-level fire response within seconds, full-cell management and a long design life of up to 15 years with a cycle life of 62,500 cycles @1C. An optional intelligent cloud management platform is available for enhanced O&M visibility and efficiency.

Application Scenarios

• Data centers
• Financial institutions
• Rail transit
• Power backup in off-grid or remote sites

Battery Quick Facts

• Battery chemistry: Lithium Iron Phosphate (LFP)
• Discharge efficiency: 65%
• Design life: 15 years

Key Features

• Modular design
  Prefabricated overall delivery for simplified transport and fast on-site installation
• Multi-module series connection
  Supports flexible voltage configurations to meet different system requirements
• Multi-module parallel connection
  Enables scalable power expansion to match varying load demands
• Compatibility with UPS architectures
  Supports two-wire and three-wire connections and common UPS topologies
• Controllable circulating current management
  Allows mixed operation of new and aged modules to reduce maintenance and replacement costs

Industry Applications

• UPS & AIDC battery solutions
• Telecom battery solutions
• Motive power solutions
• Energy storage solutions

Specification
Module:
Model | Capacity | Cell Model | Series/parallel configuration | Dimension (mm) L W H | Rated Energy (kwh)
TPH10 | 51.2V50AH | 50Ah | 1P16S | 442*600*127 | 2.05
TP10 | 51.2V50AH | 50Ah | 1P16S | 442*690*106 | 2.56
TP20 | 51.2V100AH | 50Ah | 2P16S | 442*800*150 | 5.12
TPL5 | 51.2V100AH | 100Ah | 1P16S | 442*690*108 | 5.12
TPL10 | 51.2V200AH | 100Ah | 2P16S | 442*800*149 | 10.24

Rack:
Model | Capacity | Module Model | Number of modules | Dimension (mm) L*W*H | Rated Energy (kwh)
TPH160 | 409.6V 50AH | TPH10 | 8 | 600*1000*2000 | 16.38
TPH200 | 512V 50AH | TPH10 | 10 | 600*1000*2000 | 20.48
TPH240 | 614.4V 50AH | TPH10 | 12 | 600*1000*2000 | 24.50
TP80 | 409.6V 50AH | TP10 | 8 | 600*1000*2000 | 20.48
TP100 | 512V 50AH | TP10 | 10 | 600*1000*2000 | 25.60
TP120 | 614.4V 50AH | TP10 | 12 | 600*1000*2000 | 30.72
TP140 | 716.8V 50AH | TP10 | 14 | 600*1000*2300 | 35.84
TP160 | 409.6V 100AH | TP20 | 8 | 600*1000*2000 | 40.96
TP200 | 512V 100AH | TP20 | 10 | 600*1000*2000 | 51.20
TP220 | 563.2V 100AH | TP20 | 11 | 600*1000*2300 | 56.32
TP240 | 614.4V 100AH | TP20 | 12 | 600*1000*2300 | 61.44
TPL40A | 409.6V 100AH | TPL5 | 8 | 600*1000*2000 | 40.96
TPL50A | 512V 100AH | TPL5 | 10 | 600*1000*2000 | 51.20
TPL60A | 614.4V 200AH | TPL5 | 12 | 600*1000*2000 | 61.44
TPL80 | 409.6V 200AH | TPL20 | 8 | 600*1000*2000 | 81.92
TPL100 | 512V 200AH | TPL20 | 10 | 600*1000*2000 | 102.4
TPL120 | 614.4V 200AH | TPL20 | 12 | 600*1000*2300 | 122.8

FAQs (selected technical points)

• What causes communication, voltage, or temperature self-check failure?
  Possible causes: wiring issues; incorrect DIP switch settings; poor network cable connection.
  Suggested checks: inspect network cables between CBMS and GBMS; verify DIP switch settings and CAN/485 termination resistors; inspect connections for poor contact or looseness.
• Why can't the battery be charged?
  Possible causes: charger or UPS mainboard failure; battery over-discharge triggered protection (voltage below cutoff); BMS malfunction.
  Suggested checks: verify charger output matches battery specifications; attempt activation with professional equipment; inspect BMS for faults.

Technical specifications

• Battery chemistry: Lithium Iron Phosphate (LFP)
• Discharge efficiency: 65%
• Design life: 15 years
• Cycle life: 62,500 cycles @1C
• Safety: four-level protection; cabinet-level fire response within seconds; integrated single-cell monitoring for 24/7 real-time online monitoring
• Modularity: standard 19-inch cabinet modules; prefabricated delivery; full front-end wiring for simplified maintenance
• Voltage configuration: supports 51.2V (5 ≤ n ≤ 14 in series)
• Scalability: supports multi-module series and parallel connections
• Compatibility: supports two-wire and three-wire UPS connections
• Rack features: visual display per rack for real-time status; FCL pre-installed to minimize on-site wiring
