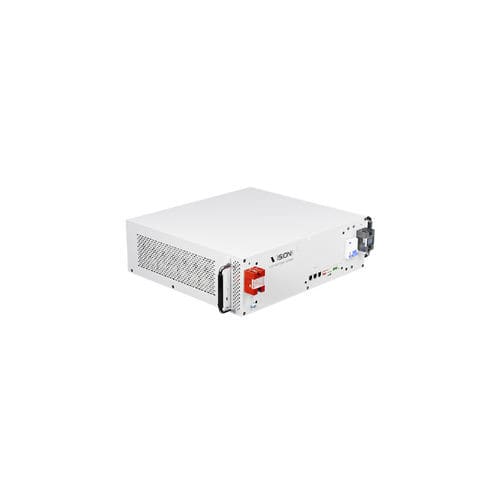

Lithium iron phosphate battery V-LFP48V

48 Vfor telecommunications equipmentCE

Overview
The 48V telecom battery series V-LFP48V provides modular lithium iron phosphate energy storage for communication base stations and core equipment rooms. Available capacities span 10–200Ah with integrated battery management and remote monitoring options for reliable site operation.

Application Scenarios

• Communication base stations
• Core equipment rooms

Battery Quick Facts

• Battery Type: Lithium Iron Phosphate (LFP) Battery
• Nominal Voltage (V): 48V
• Nominal Capacity (Ah): 10-200Ah
• Design Life: 10 years
• Operating Temperature Range (stated in specification): -20℃ - 50℃
• Qualification & Certificate: CE, FDA

Key Features

• Environmental adaptability: stable operation in -20℃ to 60℃ and humidity 0–90%, suitable for outdoor and adverse conditions.
• Built-in BMS: voltage, current and temperature protections plus automatic cell balancing to maintain safety and extend cycle life.
• Multi-protocol communication: RS485, RS232, CAN interfaces for compatibility with mainstream rectifiers and site controllers.
• IoT platform support: lifecycle monitoring, real-time status and early fault warnings via platform integration.
• Intelligent anti-theft: anti-theft communication, GPS geo-fencing, tilt alarm and location tracking for unattended outdoor installations.
• Optional fire protection module: available intelligent fire protection upgrade for enhanced safety under extreme conditions.
• Additional: maintenance-free design, remote monitoring, long cycle life, modular deployment options.

Specification (selected models)
Model | Nominal Voltage（V） | Nominal Capacity（AH) | Dimension（mm）L*W*H | Weight（KG） | Maximum Discharging Current（A)
V-LFP4810 | 48 | 10 | 442*285*44 | 8 | 10
V-LFP4820 | 48 | 20 | 440*243*88 | ~9.7±0.5 | 20
V-LFP4830 | 48 | 30 | 442*385*88 | 18 | 30
V-LFP4850 | 48 | 50 | 442*440* 134.5 | 30 | 50
V-LFP48100（2U） | 48 | 100 | 442* 520*88 | 44 | 100
V-LFP48100 | 48 | 100 | 442*480*133 | 40 | 100
V-LFP48150 | 48 | 150 | 442*540*190 | 59 | 100
V-LFP48200 | 48 | 200 | 442*550*222 | 75 | 100

Technical specifications

• Battery Type: Lithium Iron Phosphate (LFP)
• Nominal Voltage: 48V
• Nominal Capacity Range: 10-200Ah
• Design Life: 10 years
• Operating Temperature Range: -20℃ to 50℃ (spec table) and -20℃ to 60℃ (feature notes present on page)
• Operating Humidity: 0–90%
• Certifications: CE, FDA
• Communication Interfaces: RS485, RS232, CAN
• BMS: Built-in with voltage/current/temperature protections and automatic cell balancing
• Anti-Theft Features: GPS geo-fencing, tilt alarm, location tracking
• Optional: Built-in fire protection module, IoT platform integration, remote monitoring
• Typical application: Communication base stations and core equipment rooms
