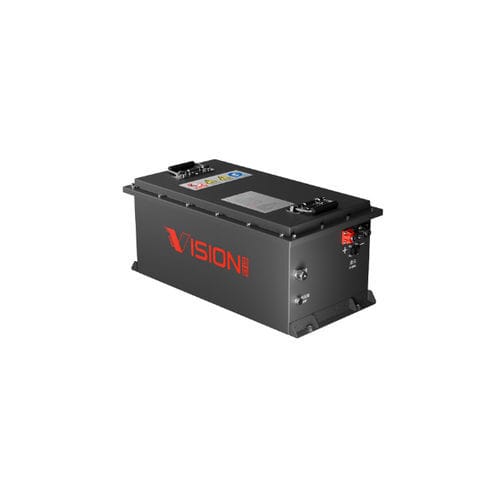

LFP battery V-EP series

Overview
V-EP (ElevatePower) is a family of intelligent lithium iron phosphate (LFP) battery packs designed specifically for aerial work platforms. Engineered for harsh operating conditions, the series supports scissor lifts (6–14 m) and boom lifts (18–28 m) with options for modular and high-power configurations.

Application Scenarios

• 6–14 m scissor lifts
• 18–28 m boom lifts

Battery Quick Facts

• Battery type: Lithium Iron Phosphate (LFP)
• Nominal voltage (V): 25.6–83.2 V
• Nominal capacity (Ah): 100–600 Ah (model-dependent)
• Design life: 10 years
• Operating efficiency: ≥98%
• Fastest charging time: 2–3 hours

Key Features

• Hybrid compatibility: plug-and-play operation with hybrid power systems for on-demand charging and use
• High-level protection: IP67-rated design for dust resistance and short-term water immersion
• Intelligent BMS: imported-grade chips for precise voltage, current and temperature management; EMC-compliant
• Custom CAN protocol support: compatible with multiple CAN communication protocols and customizable for equipment integration
• Authoritative certifications: complies with GB/38031, CE 62619, UN38.3 and other international/automotive standards
• Automotive-grade performance: supports up to 850 A discharge for high-power applications
• Full environmental adaptability: stable operation from -30°C to 55°C; suitable for altitudes up to 5000 m and adverse outdoor conditions

Industry Applications

• Motive power solutions for aerial work platforms and related equipment

Specification
Model | Nominal Voltage (V) | Nominal Capacity (AH) (25°C, 0.5C) | Dimension (mm) L*W*H | Weight (KG)
25.6V100Ah | 25.6 | 100 | 331.4*288*220 | 25.4
25.6V200Ah | 25.6 | 200 | 605*325*270 | 55.5
51.2V200Ah | 51.2 | 200 | 780*430*270 | 101
51.2V400Ah | 51.2 | 400 | (820*350*411)*2 | (122kg)*2
51.2V500Ah | 51.2 | 500 | (806*341~455)*2 | (133kg)*2
51.2V600Ah | 51.2 | 600 | (806*600*357)*2 | (166kg)*2
83.2V400Ah | 83.2 | 400 | 1082*626*497 | 362
83.2V500Ah | 83.2 | 500 | (1084*636*455)*2 | (241kg)*2

Technical characteristics

• Battery chemistry: Lithium Iron Phosphate (LFP)
• Nominal voltage range: 25.6–83.2 V
• Nominal capacity range: 100–600 Ah (module/parallel configurations supported)
• Design life: 10 years
• Operating efficiency: ≥98%
• Fast charging capability: 2–3 hours
• Maximum discharge: up to 850 A (application dependent)
• Protection rating: IP67
• Operating temperature: -30°C to 55°C
• Altitude suitability: up to 5000 m
• Intelligent BMS: precise voltage, current and temperature management; EMC-compliant
• Communication: supports custom CAN protocols for integration with vehicle/equipment platforms
• Certifications: GB/38031, CE 62619, UN38.3 and other international/automotive standards
• Typical applications: scissor lifts (6–14 m), boom lifts (18–28 m) and other aerial work platform motive power scenarios
